角加速度平滑的可变类圆周下肢康复步态规划

doi:10.3969/j.issn.1006-9771.2021.06.001

《中国康复理论与实践》 ›› 2021, Vol. 27 ›› Issue (6): 621-626.doi: 10.3969/j.issn.1006-9771.2021.06.001

角加速度平滑的可变类圆周下肢康复步态规划

陈琳¹,夏凯¹,张学涛¹,杨思创^1,²,潘海鸿¹()

^1.广西大学机械工程学院，广西南宁市 530004
^2.广西南宁丁一科技有限公司，广西南宁市 530004

收稿日期:2021-01-25 修回日期:2021-02-24 出版日期:2021-06-25 发布日期:2021-06-21
通讯作者: 潘海鸿 E-mail:hustphh@163.com
作者简介:陈琳(1973-)，女，汉族，山东青岛市人，博士，教授，博士生导师，主要研究方向：智能机器人技术、电池管理、机电检测与控制技术|潘海鸿(1966-)，男，汉族，广西南宁市人，博士，教授，博士生导师，主要研究方向：机器人控制技术、高速高精度运动控制和伺服驱动技术。
基金资助:
广西创新驱动发展专项(AA17204017);2.广西重点研发计划项目(AB16380237)

Variable Quasi-circular Gait Planning with Smooth Angular Acceleration for Lower Limb Rehabilitation

Lin CHEN¹,Kai XIA¹,Xue-tao ZHANG¹,Si-chuang YANG^1,²,Hai-hong PAN¹()

^1.College of Mechanical Engineering, Guangxi University, Nanning, Guangxi 530004, China
^2.Nanning Dingyi Technology Co. , Ltd. , Nanning, Guangxi 530004, China

Received:2021-01-25 Revised:2021-02-24 Published:2021-06-25 Online:2021-06-21
Contact: Hai-hong PAN E-mail:hustphh@163.com
Supported by:
Guangxi Innovation-driven Development Project(AA17204017);Guangxi Key Research and Development Project(AB16380237)

摘要/Abstract

摘要： 目的

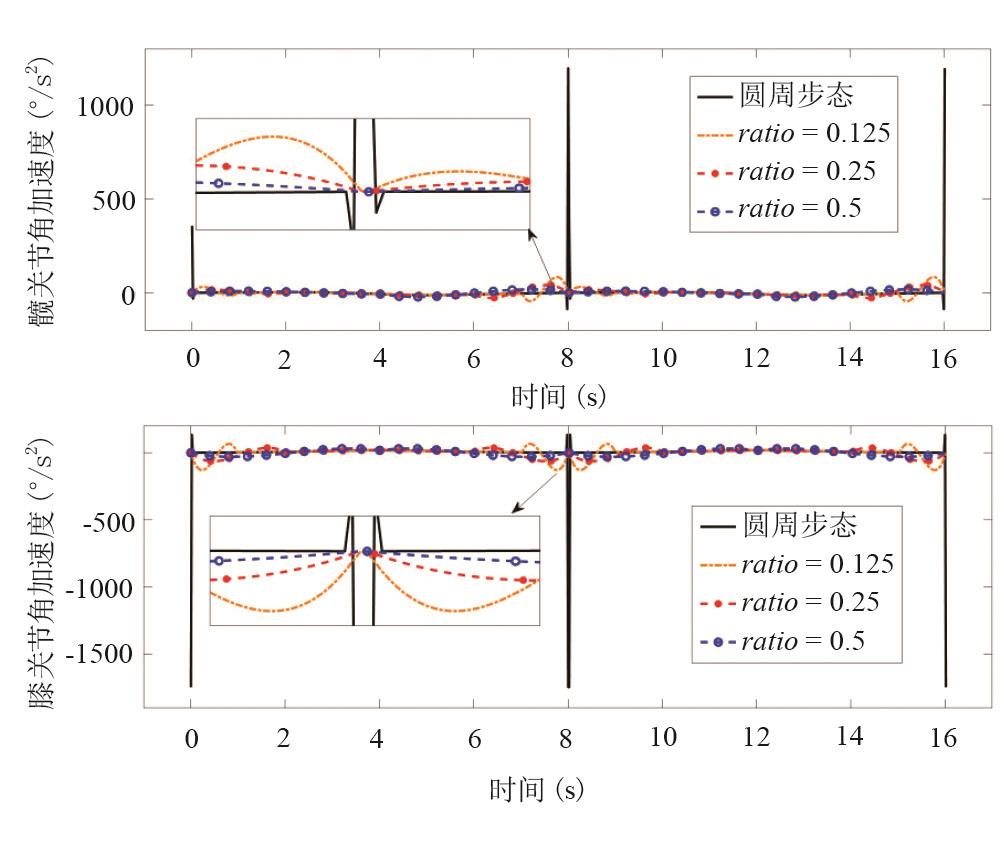

解决下肢康复机器人圆周步态训练时，在周期运动衔接处由角加速度突变导致机器人腿部抖动的问题。

方法

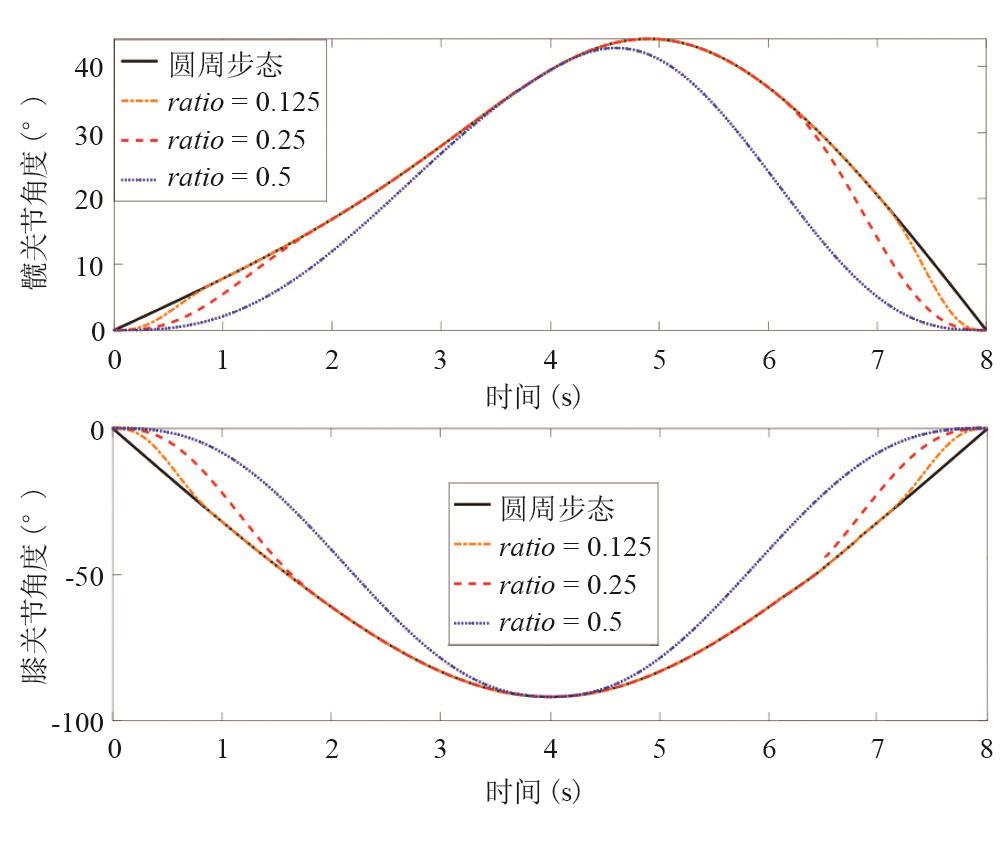

提出一种类圆周步态，将周期运动分为起始段、中间段和结束段三段，起始段和结束段时间区间大小相同且可随参数ratio调整，两段的关节轨迹使用五次多项式规划，中间段仍为圆周步态关节轨迹。并对提出的类圆周步态轨迹进行仿真。

结果

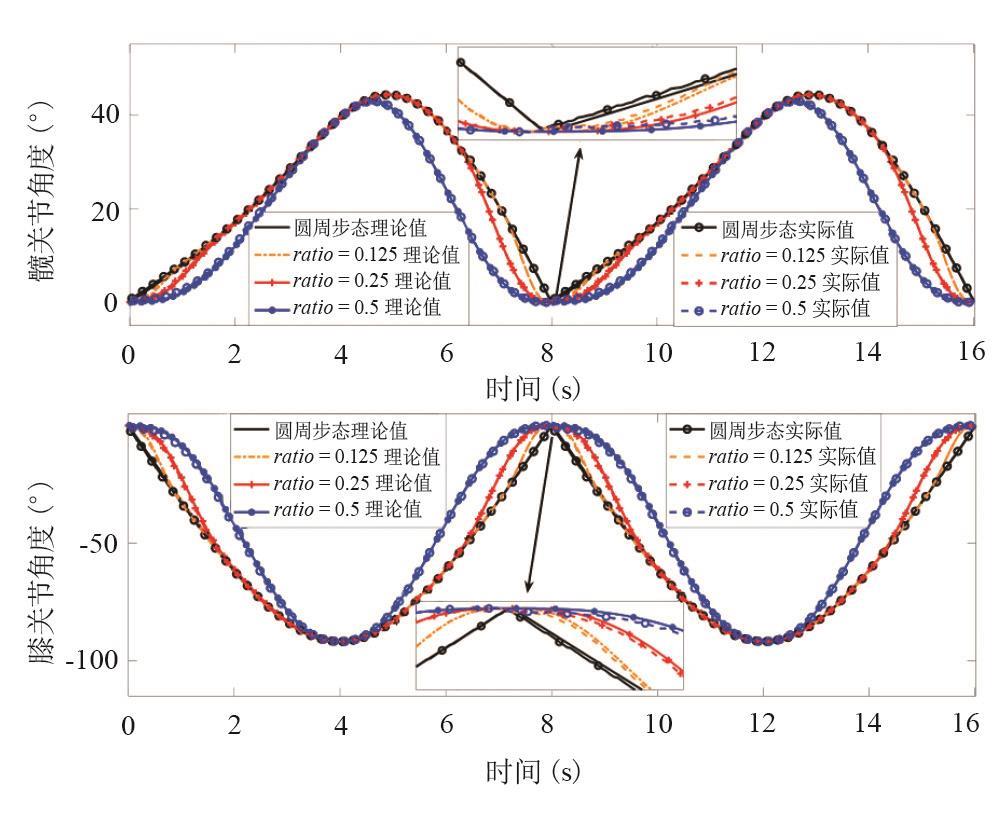

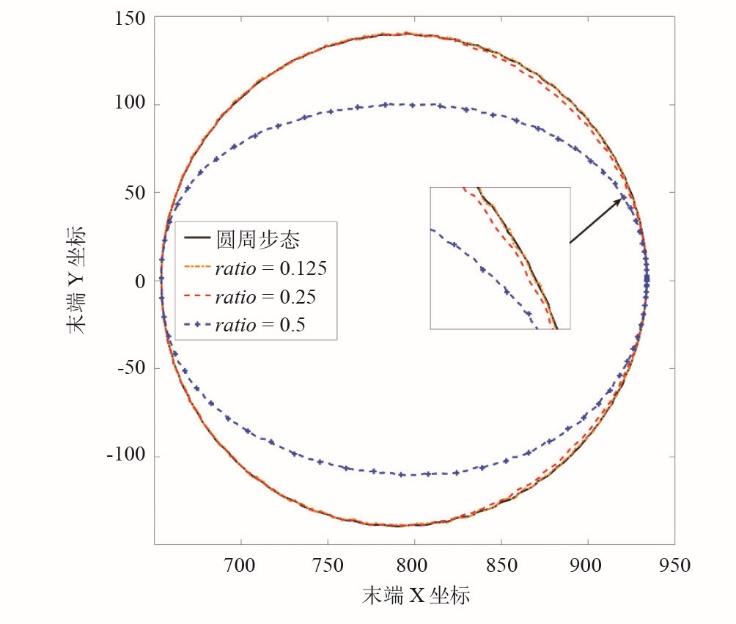

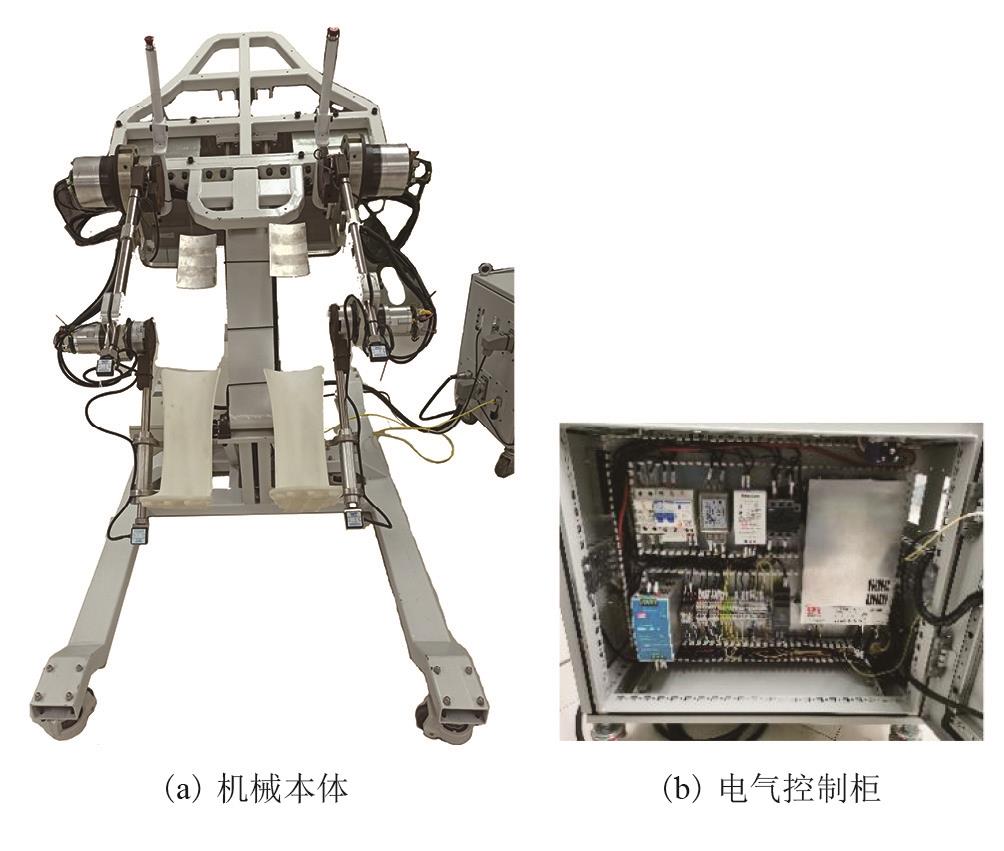

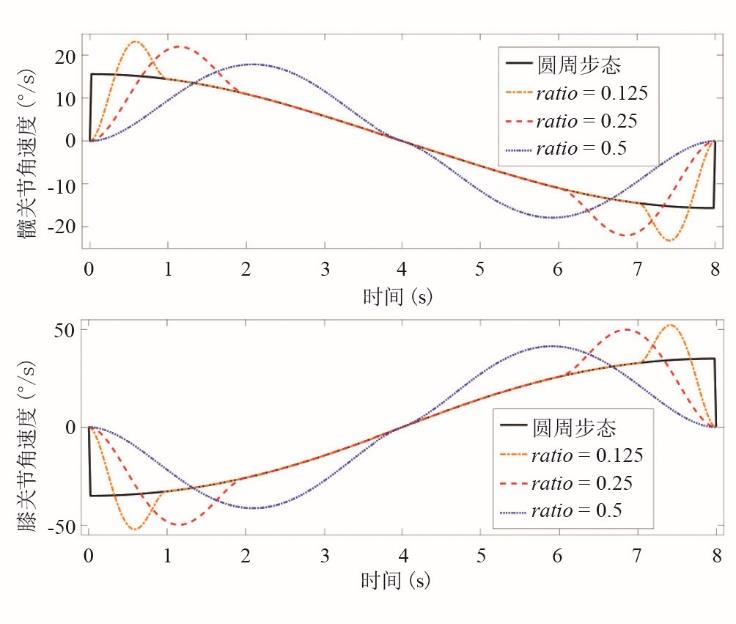

不同ratio下的类圆周步态在周期过渡时角速度连续可导且为0，角加速度连续且为0，末端轨迹随ratio变大而逐渐变得扁平。在下肢康复机器人物理样机上进行实验验证，实验结果与仿真结果基本一致，且机器运行平稳。

结论

提出的可变类圆周步态在周期运动衔接处角加速度平滑，可有效解决使用圆周步态进行下肢康复训练时的抖动问题，避免对患者的二次伤害。

关键词: 下肢康复机器人, 步态轨迹规划, 运动学分析, 五次多项式

Abstract: Objective

To solve the problem of leg shaking caused by the sudden change of angular acceleration at the joint of periodic motion during circular gait training of lower limb rehabilitation robot.

Methods

A kind of quasi-circular gait was proposed, which divided the periodic motion into three phases: start phase, middle phase and end phase. The time was equal in the start phase and the end phase, and could be adjusted with the parameter ratio. The joint trajectories of the two phases were planned by quintic polynomial, and the middle phase was still the circular gait joint trajectory. The trajectory of the proposed quasi-circular gait was simulated.

Results

The angular velocity was continuously differentiable and 0, the angular acceleration was continuous and 0, and the end-effector trajectory became flat with the increase of ratio. The results on the physical prototype of the lower limb rehabilitation robot were principally consistent with the simulation, and the machine worked smoothly.

Conclusion

The proposed variable quasi-circular gait had smooth angular acceleration at the junction of periodic motions, which effectively solved the jitter problem when using circular gait for lower limb rehabilitation training and avoided secondary injury to the patients.

Key words: lower limb rehabilitation robot, gait planning, kinematics analysis, quintic polynomial

中图分类号:

R496

陈琳,夏凯,张学涛,杨思创,潘海鸿. 角加速度平滑的可变类圆周下肢康复步态规划[J]. 《中国康复理论与实践》, 2021, 27(6): 621-626.

Lin CHEN,Kai XIA,Xue-tao ZHANG,Si-chuang YANG,Hai-hong PAN. Variable Quasi-circular Gait Planning with Smooth Angular Acceleration for Lower Limb Rehabilitation[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2021, 27(6): 621-626.

图/表 10

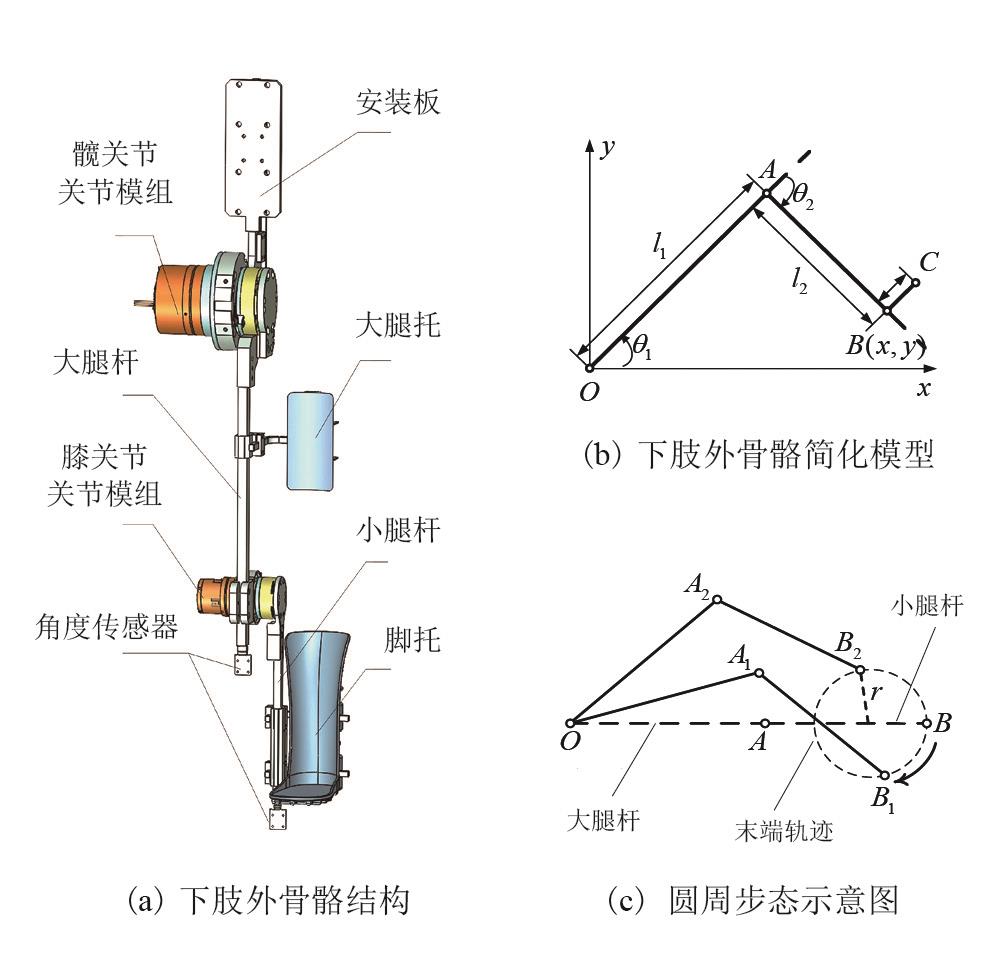

图1

图2

图3

图4

图5

图6

表1

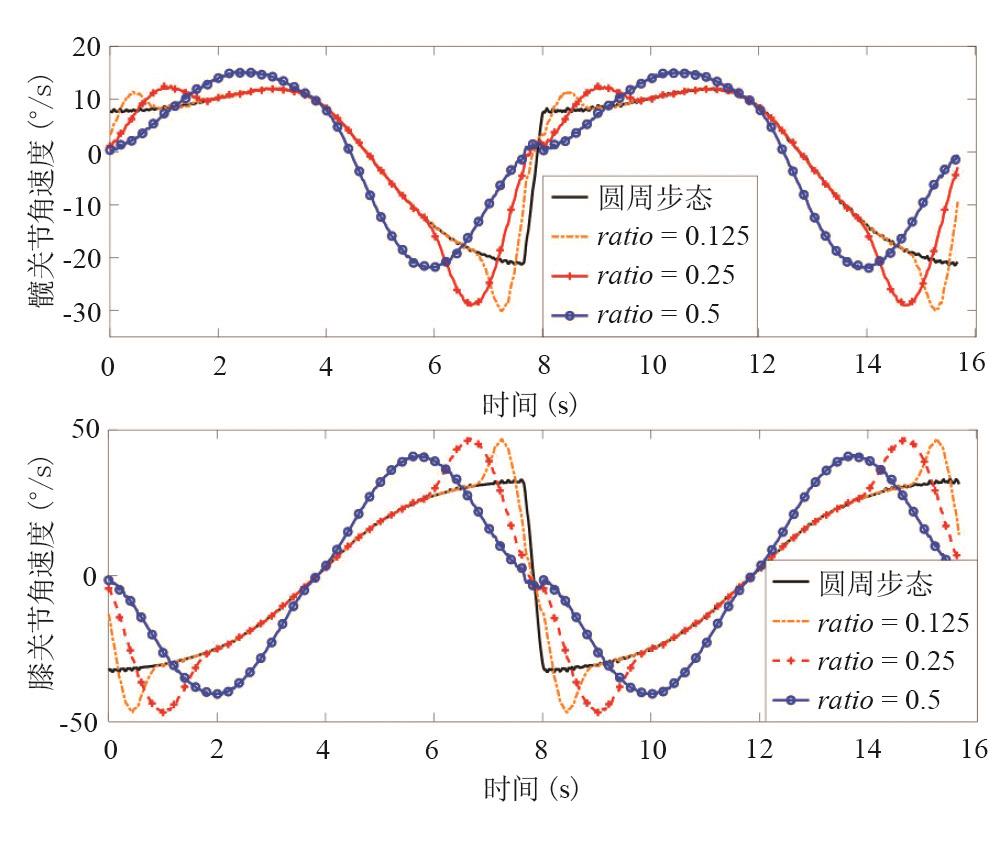

图7

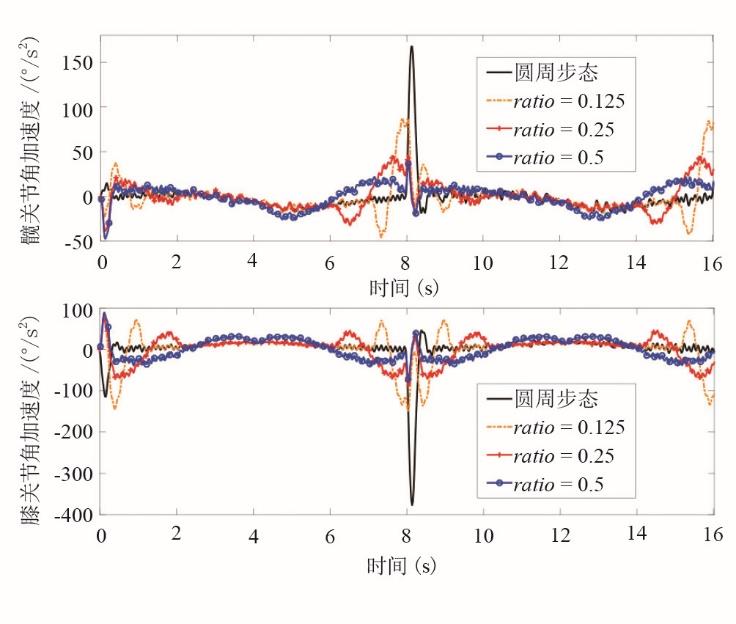

图8

图9

参考文献 14

1	VEERBEEK J M, LANGBROEK-AMERSFOORT A C, van WEGEN E E H, et al. Effects of robot-assisted therapy for the upper limb after stroke [J]. Neurorehabil Neural Repair, 2016,31(2): 107-121.
2	卢利萍,桑德春,季淑凤. 下肢康复机器人训练对脑卒中偏瘫患者运动能力和日常生活活动能力的影响[J]. 中国康复理论与实践, 2016, 22(10): 1200-1203.
	LU L P, SANG D C, JI S F. Effect of leg rehabilitation robot training on motor and activities of daily living in hemipleg-ic patients after stroke [J]. Chin J Rehabil Theory Pract, 2016, 22(10): 1200-1203.
3	HUO W, MOHAMMED S, MORENO J C, et al. Lower limb wearable robots for assistance and rehabilitation: a state of the art [J]. IEEE Systems J, 2016, 10(3): 1068-1081.
4	郑彭,黄国志. 下肢康复机器人在脑卒中患者运动功能障碍中的应用进展[J]. 中国康复医学杂志, 2017, 32(6): 716-719.
	ZHENG P, HUANG G Z. Application progress of lower limb rehabilitation robot in stroke patients with motor dysfunction [J]. Chin J Rehabil Med, 2017, 32(6): 716-719.
5	郭冰菁,韩建海,李向攀,等. 理疗师交互下的下肢康复训练机器人个性化步态规划方法[J]. 机器人, 2018, 40(4): 479-490, 499.
	GUO B J, HAN J H, LI X P, et al. Personalized gait planning method of lower limb rehabilitation training robot under the interaction of physical therapists [J]. Robot, 2018, 40(4): 479-490, 499.
6	张彦斐,时兆义,宫金良. 基于关键点约束的下肢外骨骼机器人步态规划[J]. 机械设计与研究, 2019, 35(2): 41-44.
	ZHANG Y F, SHI Z Y, GONG J L. Gait planning of lower limb exoskelet on robot based on key point constraints [J]. Mach Design Res, 2019, 35(2): 41-44.
7	刘瑛奇,管小荣,李仲,等. 下肢助行外骨骼步态规划与仿真研究[J]. 计算机工程与应用, 2019, 55(11): 221-228.
	LIU Y Q, GUAN X R, LI Z, et al. Research on gait planning and simulation of lower limb assisted exoskeleton [J]. Computer Engineer Appl, 2019, 55(11): 221-228.
8	陈贵亮,周晓晨,刘更谦. 适应个体差异的下肢康复机器人步态规划[J]. 机械设计与制造, 2014(12): 200-203.
	CHEN G L, ZHOU X C, LIU G Q. Gait planning of lower limb rehabilitation robot adapting to individual differences [J]. Mach Design Manufac, 2014(12): 200-203.
9	吴伟国,栗华,高力扬. 人体步行捕捉下的双足机器人跟随步行与实验[J]. 哈尔滨工业大学学报, 2017, 49(1): 21-29.
	WU W G, LI H, GAO L Y. Biped robot following walking and experiment under human walking capture [J]. J Harbin Institute Technol, 2017, 49(1): 21-29.
10	张立勋,张晓超. 下肢康复训练机器人步态规划及运动学仿真[J]. 哈尔滨工程大学学报, 2009, 30(2): 187-191.
	ZHANG L X, ZHANG X C. Gait planning and kinematics simulation of lower limb rehabilitation training robot [J]. J Harbin Engineer Univ, 2009, 30(2): 187-191.
11	史小华,王洪波,孙利,等. 外骨骼型下肢康复机器人结构设计与动力学分析[J]. 机械工程学报, 2014, 50(3): 41-48.
	SHI X H, WANG H B, SUN L, et al. Structural design and dynamic analysis of exoskeleton type lower limb rehabilitation robot [J]. J Mech Engineer, 2014, 50(3): 41-48.
12	张冬. 下肢康复机器人控制系统及控制策略研究[D]. 秦皇岛:燕山大学, 2016.
	ZHANG D. Research on control system and control strategy of lower limb rehabilitation robot [D]. Qinhuangdao: Yanshan University, 2016.
13	蒲明辉,余蔚,夏凯,等. 适应个体差异的下肢康复机器人步态规划与实现[J]. 中国康复理论与实践, 2020, 26(12): 1464-1470.
	PU M H, YU W, XIA K, et al. Solution for movement mode of lower limb rehabilitation robot adapted to individual differences [J]. Chin J Rehabil Theory Pract, 2020, 26(12): 1464-1470.
14	潘海鸿,刘皖蜀,梁旭斌,等. 一种步态训练康复机器人直立床:ZL201910061153.X [P]. 2019-12-27.
	PAN H H, LIU W S, LIANG X B, et al. An upright bed for gait training rehabilitation robot: ZL201910061153.X [P]. 2019-12-27.

项目	圆周步态	ratio = 0.125	ratio = 0.25	ratio = 0.5
髋关节正向最大误差	0.6183	0.6066	0.5819	0.5696
髋关节负向最大误差	-0.0875	-0.1065	-0.0736	-0.0782
膝关节正向最大误差	0.2429	0.1844	0.1479	0.1804
膝关节负向最大误差	-1.2047	-1.2547	-1.2487	-1.2327
