3D打印脊柱侧凸矫形器的矫正效果

doi:10.3969/j.issn.1006-9771.2023.04.003

《中国康复理论与实践》 ›› 2023, Vol. 29 ›› Issue (4): 390-395.doi: 10.3969/j.issn.1006-9771.2023.04.003

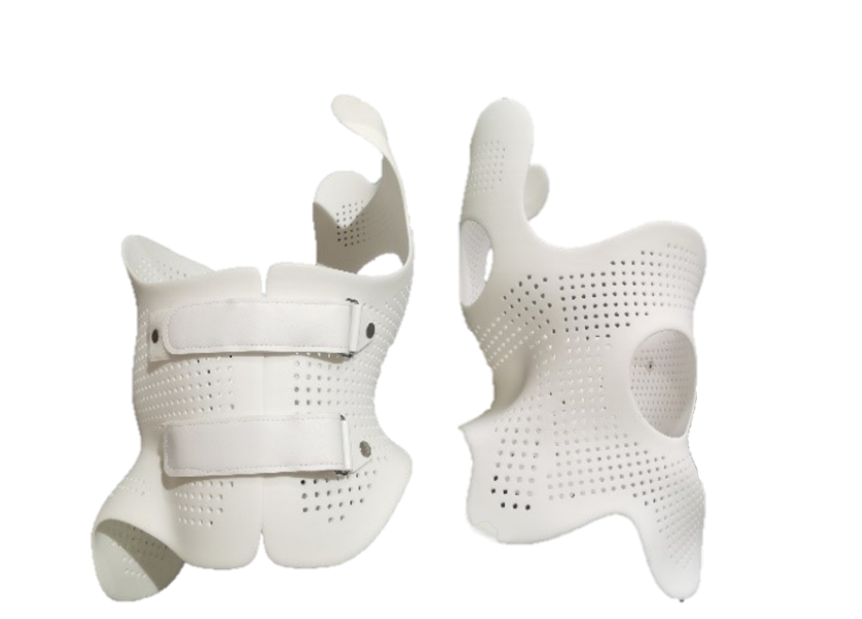

3D打印脊柱侧凸矫形器的矫正效果

于文强¹^,², 侯俞彤¹, 黄承兰¹, 杨云霄¹, 鲁德志³, 王彩萍², 王金武²()

1.潍坊医学院康复医学院，山东潍坊市 261053
2.上海交通大学医学院附属第九人民医院骨科，上海市 200011
3.上海大学医学院，上海市 200011

收稿日期:2022-11-18 修回日期:2023-02-20 出版日期:2023-04-25 发布日期:2023-05-19
通讯作者: 王金武(1971-)，男，博士，教授，博士研究生导师，主要研究方向：骨科学、数字医学。E-mail： wangjw-team@shsmu.edu.cn
作者简介:于文强(1997-)，男，汉族，安徽亳州市人，硕士研究生，主要研究方向：3D打印康复辅具。
基金资助:
1.科技部重点研发计划项目(2020YFB1711500);2.转化医学国家重大科技基础设施(上海)开放课题基金项目(TMSK-2021-140);3.上海交通大学医学院双百人计划项目(20152224);4.上海交通大学医学院转化医学创新基金项目(TM201915);5.上海交通大学医学院附属第九人民医院临床研究型多学科诊疗项目(201914)

Corrective effect of 3D printed scoliosis orthoses

YU Wenqiang¹^,², HOU Yutong¹, HUANG Chenglan¹, YANG Yunxiao¹, LU Dezhi³, WANG Caiping², WANG Jinwu²()

1. School of Rehabilitation Medicine, Weifang Medical University, Weifang, Shandong 261053, China
2. Department of Orthopedics, Ninth People's Hospital, Shanghai Jiaotong University School of Medicine, Shanghai 200011, China
3. School of Medicine, Shanghai University, Shanghai 200011, China

Received:2022-11-18 Revised:2023-02-20 Published:2023-04-25 Online:2023-05-19
Contact: WANG Jinwu, E-mail: wangjw-team@shsmu.edu.cn
Supported by:
National Key R & D Program of China(2020YFB1711500);National Facility for Translational Medicine (Shanghai) Open Project Fund(TMSK-2021-140);Shanghai Jiaotong University School of Medicine Two-hundred Talent Support(20152224);Translational Medicine Innovation Project of Shanghai Jiaotong University School of Medicine(TM201915);Clinical Research Project of Multi-Disciplinary Team, Ninth People's Hospital, Shanghai Jiaotong University School of Medicine(201914)

摘要/Abstract

摘要：

目的观察3D打印脊柱侧凸矫形器的矫正期内矫正效果和短期矫正效果。
方法 2021年7至12月，就诊于上海交通大学附属第九人民医院的青少年特发性脊柱侧凸患者36例，穿戴矫形器前及穿戴后即刻摄脊柱全长X线片；每日穿戴矫形器20 h以上，6个月后随访拍摄X线片；计算Cobb角。穿戴矫形器前后采用脊柱侧凸研究会22项问卷简体中文版(SRS-22)进行评估。
结果穿戴矫形器前，患者平均Cobb角(22.10±6.29)°；穿戴后即刻Cobb角(7.85±10.90)° (t = 4.775, P < 0.01)；6个月后，Cobb角(14.33±0.74)°，仍明显低于穿戴前(t = 4.189, P < 0.01)。穿戴6个月后，SRS-22功能状况维度评分明显增加(Z = -2.676, P < 0.01)。穿戴后即刻Cobb角与6个月后Cobb角呈正相关(r = 0.826, P < 0.05)。
结论穿戴3D打印脊柱侧凸矫形器矫正期内和短期矫正效果均较好。

关键词: 脊柱侧凸, 3D打印, 矫形器

Abstract:

Objective To investigate the in-brace and short-term correction of 3D-printed scoliosis orthoses.
Methods From July to December 2021, 36 patients with adolescent idiopathic scoliosis from Ninth People's Hospital, Shanghai Jiaotong University School of Medicine were selected to complete full-length radiographs of the spine before and immediately after wearing the orthosis. They wore the orthosis more than 20 hours a day, and took radiographs six months later. Cobb angle was calculated. They were assessed with Chinese version of the Scoliosis Research Society's outcomes instrument 22 (SRS-22) before wearing and six months follow-up.
Results The mean Cobb angle was (22.10±6.29)° before wearing, and it was (7.85±10.90)° immediately after wearing (t = 4.775, P < 0.01) and (14.33±0.74)° six months follow-up (t = 4.189, P < 0.01). The score of functional status of SRS-22 increased six months follow-up (Z = -2.676, P < 0.01). The Cobb angle immediately after wearing correlated with the Cobb angle six months follow-up (r = 0.826, P < 0.05).
Conclusion 3D-printed scoliosis orthoses can correct the scoliosis satisfactorily, in-brace and in short-term.

Key words: scoliosis, 3D printing, orthosis

中图分类号:

R496

于文强, 侯俞彤, 黄承兰, 杨云霄, 鲁德志, 王彩萍, 王金武. 3D打印脊柱侧凸矫形器的矫正效果[J]. 《中国康复理论与实践》, 2023, 29(4): 390-395.

YU Wenqiang, HOU Yutong, HUANG Chenglan, YANG Yunxiao, LU Dezhi, WANG Caiping, WANG Jinwu. Corrective effect of 3D printed scoliosis orthoses[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2023, 29(4): 390-395.

图/表 4

参考文献 44

[1]	ALTAF F, GIBSON A, DANNAWI Z, et al. Adolescent idiopathic scoliosis[J]. BMJ, 2013, 346: f2508. doi: 10.1136/bmj.f2508
[2]	KARAVIDAS N. Bracing in the treatment of adolescent idiopathic scoliosis: evidence to date[J]. Adolesc Health Med Ther, 2019, 10: 153-172.
[3]	GOLDBERG C J, MOORE D P, FOGARTY E E, et al. Adolescent idiopathic scoliosis: the effect of brace treatment on the incidence of surgery[J]. Spine (Spine (Phila Pa 1976), 2001, 26(1): 42-47.
[4]	WILEY J W, THOMSON J D, MITCHELL T M, et al. Effectiveness of the Boston brace in treatment of large curves in adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2000, 25(18): 2326-2332. doi: 10.1097/00007632-200009150-00010
[5]	LENSSINCK M L, FRIJLINK A C, BERGER M Y, et al. Effect of bracing and other conservative interventions in the treatment of idiopathic scoliosis in adolescents: a systematic review of clinical trials[J]. Phys Ther, 2005, 85(12): 1329-1339. doi: 10.1093/ptj/85.12.1329
[6]	RICHARDS B S, BERNSTEIN R M, D AMATO C R, et al. Standardization of criteria for adolescent idiopathic scoliosis brace studies: SRS Committee on Bracing and Nonoperative Management[J]. Spine (Phila Pa 1976), 2005, 30(18): 2068-2077. doi: 10.1097/01.brs.0000178819.90239.d0
[7]	WEINSTEIN S L, DOLAN L A, WRIGHT J G, et al. Effects of bracing in adolescents with idiopathic scoliosis[J]. N Engl J Med, 2013, 369(16): 1512-1521. doi: 10.1056/NEJMoa1307337
[8]	LANDAUER F, WIMMER C, BEHENSKY H. Estimating the final outcome of brace treatment for idiopathic thoracic scoliosis at 6-month follow-up[J]. Pediatr Rehabil, 2003, 6(3-4): 201-207. doi: 10.1080/13638490310001636817 pmid: 14713586
[9]	WONG M S. Computer-aided design and computer-aided manufacture (CAD/CAM) system for construction of spinal orthosis for patients with adolescent idiopathic scoliosis[J]. Physiother Theory Pract, 2011, 27(1): 74-79. doi: 10.3109/09593980903269741 pmid: 20690874
[10]	HAWARY R E, ZAAROOR-REGEV D, FLOMAN Y, et al. Brace treatment in adolescent idiopathic scoliosis: risk factors for failure: a literature review[J]. Spine J, 2019, 19(12): 1917-1925. doi: 10.1016/j.spinee.2019.07.008
[11]	UPADHYAY S S, NELSON I W, HO E K, et al. New prognostic factors to predict the final outcome of brace treatment in adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 1995, 20(5): 537-545. doi: 10.1097/00007632-199503010-00006
[12]	MANON V D B, VAN ROYEN B J, HAANSTRA T M, et al. Predictive factors for brace treatment outcome in adolescent idiopathic scoliosis: a best-evidence synthesis[J]. Eur Spine J, 2019, 28(3): 511-525. doi: 10.1007/s00586-018-05870-6 pmid: 30607519
[13]	XU L, QIN X, QIU Y, et al. Initial correction rate can be predictive of the outcome of brace treatment in patients with adolescent idiopathic scoliosis[J]. Clin Spine Surg, 2017, 30(4): E475-E479. doi: 10.1097/BSD.0000000000000343
[14]	PEETERS C, VAN HASSELT A J, WAPSTRA F H, et al. Predictive factors on initial in-brace correction in idiopathic scoliosis: a systematic review[J]. Spine (Phila Pa 1976), 2022, 47(8): E353-E361. doi: 10.1097/BRS.0000000000004305
[15]	周旋, 杜青, 赵黎, 等. 中文版SRS-22问卷评估青少年特发性脊柱侧凸患者生活质量的研究[J]. 中华物理医学与康复杂志, 2011, (9): 668-671.
	ZHOU X, DU Q, ZHAO L, et al. Quality of life for Chinese patients with adolescent idiopathic scoliosis: evaluation of the Chinese version of the Scoliosis Research Society's outcomes instrument 22[J]. Chin J Phys Med Rehabil, 2011, 33(9): 668-671.
[16]	CHEN R K, JIN Y A, WENSMAN J, et al. Additive manufacturing of custom orthoses and prostheses: a review[J]. Additive Manufacturing, 2016, 12: 77-89. doi: 10.1016/j.addma.2016.04.002
[17]	LIN Y, CHEUNG J, CHAN C K, et al. A randomized controlled trial to evaluate the clinical effectiveness of 3D-printed orthosis in the management of adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2022, 47(1): 13-20. doi: 10.1097/BRS.0000000000004202
[18]	CLIN J, AUBIN C, SANGOLE A, et al. Correlation between immediate in-brace correction and biomechanical effectiveness of brace treatment in adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2010, 35(18): 1706-1713. doi: 10.1097/BRS.0b013e3181cb46f6
[19]	OHRT-NISSEN S, HALLAGER D W, GEHRCHEN M, et al. Flexibility predicts curve progression in providence nighttime bracing of patients with adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2016, 41(22): 1724-1730. doi: 10.1097/BRS.0000000000001634
[20]	CHEUNG J, YIU K, VIDYADHARA S, et al. Predictability of supine radiographs for determining in-brace correction for adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2018, 43(14): 971-976. doi: 10.1097/BRS.0000000000002503
[21]	STEEN H, PRIPP A H, LANGE J E, et al. Predictors for long-term curve progression after Boston brace treatment of idiopathic scoliosis[J]. Eur J Phys Rehabil Med, 2021, 57(1): 101-109.
[22]	CASTRO F P. Adolescent idiopathic scoliosis, bracing, and the Hueter-Volkmann principle[J]. Spine J, 2003, 3(3): 180-185. doi: 10.1016/s1529-9430(02)00557-0 pmid: 14589197
[23]	GOODBODY C M, ASZTALOS I B, SANKAR W N, et al. It's not just the big kids: both high and low BMI impact bracing success for adolescent idiopathic scoliosis[J]. J Child Orthop, 2016, 10(5): 395-404. doi: 10.1007/s11832-016-0763-3 pmid: 27501808
[24]	WEISS H R, RIGO M. Expert-driven Chêneau applications: description and in-brace corrections[J]. Physiother Theory Pract, 2011, 27(1): 61-67. doi: 10.3109/09593985.2010.503991
[25]	LANG C, HUANG Z, ZOU Q, et al. Coronal deformity angular ratio may serve as a valuable parameter to predict in-brace correction in patients with adolescent idiopathic scoliosis[J]. Spine J, 2019, 19(6): 1041-1047. doi: S1529-9430(18)31278-6 pmid: 30529785
[26]	WEISS H R, SEIBEL S, MORAMARCO M, et al. Bracing scoliosis: the evolution to CAD/CAM for improved in-brace corrections[J]. Hard Tissue, 2013, 2(5). doi:10.13172/2050-2303-2-5-971. doi: 10.13172/2050-2303-2-5-971
[27]	DE MAUROY J C, LECANTE C, BARRAL F, et al. Prospective study and new concepts based on scoliosis detorsion of the first 225 early in-brace radiological results with the New Lyon brace: ARTbrace[J]. Scoliosis, 2014, 9(1): 19. doi: 10.1186/1748-7161-9-19
[28]	HARRINGTON P R. Treatment of scoliosis: correction and internal fixation by spine instrumentation[J]. J Bone Joint Surg, 2002, 84 (2): 316 doi: 10.2106/00004623-200202000-00020
[29]	WANG X B, LENKE L G, THUET E, et al. Deformity angular ratio describes the severity of spinal deformity and predicts the risk of neurologic deficit in posterior vertebral column resection surgery[J]. Spine (Phila Pa 1976), 2016, 41(18): 1447-1455. doi: 10.1097/BRS.0000000000001547
[30]	WEISS H R, WERKMANN M, STEPHAN C. Correction effects of the ScoliOlogiC "Chêneau light" brace in patients with scoliosis[J]. Scoliosis, 2007, 2: 2. doi: 10.1186/1748-7161-2-2
[31]	WONG M, CHENG J, LO K. A comparison of treatment effectiveness between the CAD/CAM method and the manual method for managing adolescent idiopathic scoliosis[J]. Prosthet Orthot Int, 2005, 29(1): 105-111. doi: 10.1080/17461550500069547 pmid: 16180383
[32]	OHRT-NISSEN S, HALLAGER D W, GEHRCHEN M, et al. Supine lateral bending radiographs predict the initial in-brace correction of the providence brace in patients with adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2016, 41(9): 798-802. doi: 10.1097/BRS.0000000000001519
[33]	GEPSTEIN R, LEITNER Y, ZOHAR E, et al. Effectiveness of the Charleston bending brace in the treatment of single-curve idiopathic scoliosis[J]. J Pediatr Orthop, 2002, 22(1): 84-87.
[34]	EMANS J B, KAELIN A, BANCEL P, et al. The Boston bracing system for idiopathic scoliosis. Follow-up results in 295 patients[J]. Spine (Phila Pa 1976), 1986, 11(8): 792-801. doi: 10.1097/00007632-198610000-00009
[35]	MAO S, SHI B, XU L, et al. Initial Cobb angle reduction velocity following bracing as a new predictor for curve progression in adolescent idiopathic scoliosis[J]. Eur Spine J, 2016, 25(2): 500-505. doi: 10.1007/s00586-015-3937-7 pmid: 25906378
[36]	OHRT-NISSEN S, HALLAGER D W, GEHRCHEN M, et al. Flexibility predicts curve progression in providence nighttime bracing of patients with adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2016, 41(22): 1724-1730. doi: 10.1097/BRS.0000000000001634
[37]	WEISS H R. Is there a body of evidence for the treatment of patients with adolescent idiopathic scoliosis (AIS)?[J]. Scoliosis, 2007, 2(1): 19. doi: 10.1186/1748-7161-2-19
[38]	BABAEE T, KAMYAB M, GANJAVIAN M S, et al. Coronal deformity angular ratio as a predictive factor for in-brace curve correction and long-term outcome of brace treatment in adolescents with idiopathic scoliosis[J]. Spine Deform, 2022, 10(3): 543-551. doi: 10.1007/s43390-021-00452-x pmid: 35034344
[39]	LANG C, HUANG Z, SUI W, et al. Factors that influence in-brace correction in patients with adolescent idiopathic scoliosis[J]. World Neurosurg, 2019, 123: e597-e603. doi: 10.1016/j.wneu.2018.11.228
[40]	SPOONAMORE M J, DOLAN L A, WEINSTEIN S L. Use of the Rosenberger brace in the treatment of progressive adolescent idiopathic scoliosis[J]. Spine (Phila Pa 1976), 2004, 29(13): 1458-1464. doi: 10.1097/01.BRS.0000128756.89367.9E
[41]	PATWARDHAN A G, BUNCH W H, MEADE K P, et al. A biomechanical analog of curve progression and orthotic stabilization in idiopathic scoliosis[J]. J Biomech, 1986, 19(2): 103-117. pmid: 3957941
[42]	CLIN J, AUBIN C E, LABELLE H. Virtual prototyping of a brace design for the correction of scoliotic deformities[J]. Med Biol Eng Comput, 2007, 45(5): 467-473. doi: 10.1007/s11517-007-0171-4 pmid: 17370098
[43]	BORYSOV M. Bracing according to best practice standards are the results repeatable?[J]. Curr Pediatr Rev, 2016, 12(1): 31-35. doi: 10.2174/1573396312666151117120746
[44]	GRIVAS T B, KASPIRIS A. European braces widely used for conservative scoliosis treatment[J]. Stud Health Technol Inform, 2010, 158: 157-166. pmid: 20543417

维度	治疗前	治疗后	Z值	P值
疼痛	4.43±0.56	4.60±0.49	-1.890	0.059
功能状况	4.27±0.81	4.67±0.54	-2.676	0.007
自我形象	4.43±0.76	4.23±0.84	-1.897	0.058
心理状况	4.47±0.85	4.23±0.62	-1.606	0.108
满意度		4.10±0.83
