失重条件下舱外手套外骨骼助力效果的评估方法

doi:10.3969/j.issn.1006-9771.2023.07.017

《中国康复理论与实践》 ›› 2023, Vol. 29 ›› Issue (7): 856-861.doi: 10.3969/j.issn.1006-9771.2023.07.017

失重条件下舱外手套外骨骼助力效果的评估方法

张瑞明¹, 王凯²(), 尹锐¹, 王海亮¹, 莫言¹

1.中国航天员科研训练中心人因工程重点实验室，北京市 100094
2.西安交通大学工业设计系，陕西西安市 710000

收稿日期:2022-10-31 修回日期:2023-06-24 出版日期:2023-07-25 发布日期:2023-08-30
通讯作者: 王凯， E-mail： 543308837@qq.com
作者简介:张瑞明(1970-)，男，汉族，山西阳泉市人，硕士，研究员，主要研究方向：航天服工程。

Evaluation method of assistance effect of extravehicular activity glove exoskeleton under weightlessness

ZHANG Ruiming¹, WANG Kai²(), YIN Rui¹, WANG Hailiang¹, MO Yan¹

1. National Key Laboratory of Human Factors Engineering, China Astronaut Research and Training Center, Beijing 100094, China
2. Department of Industrial Design, Xi'an Jiaotong University, Xi'an, Shaanxi 710000, China

Received:2022-10-31 Revised:2023-06-24 Published:2023-07-25 Online:2023-08-30
Contact: WANG Kai, E-mail: 543308837@qq.com

摘要/Abstract

摘要：

目的建立多指标融合的手部抓握疲劳度预测模型，评估舱外手套外骨骼样机的助力效果。

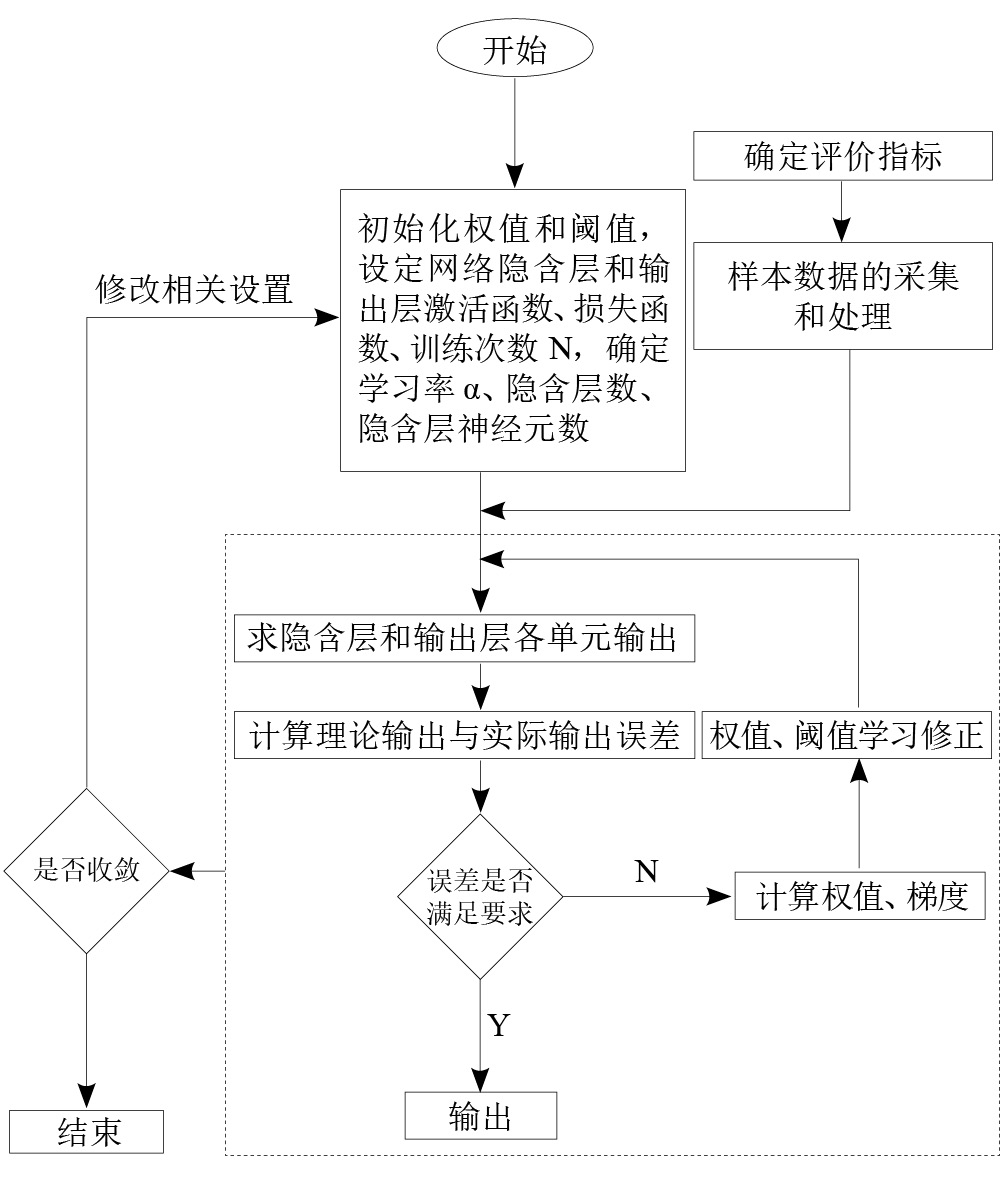

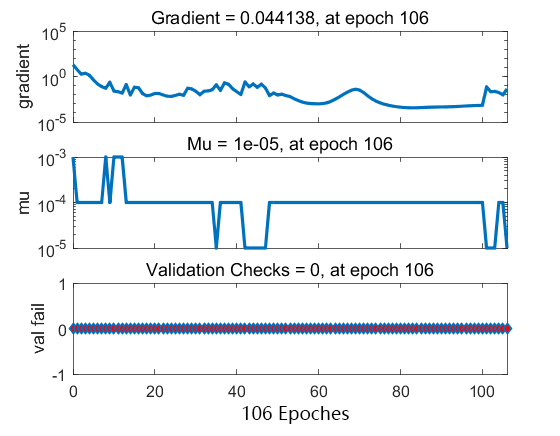

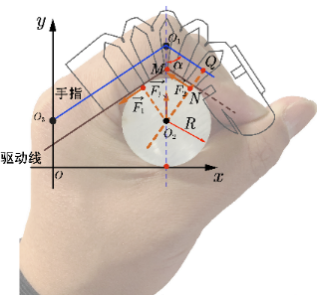

方法采用BP神经网络算法建立手部疲劳度预测模型。通过等距抓握疲劳实验确定手部疲劳度的影响因素，确定BP神经网络的输入变量分别为圆柱直径、抓握力、抓握持续时间和肌电均方根值；通过实验和主观疲劳度量表获得每组变量对应的疲劳度数据，建立基于BP神经网络算法多源融合的疲劳度评估模型；建立疲劳度和助力效果关系模型，通过对疲劳度缓解程度评估外骨骼样机的助力效果。

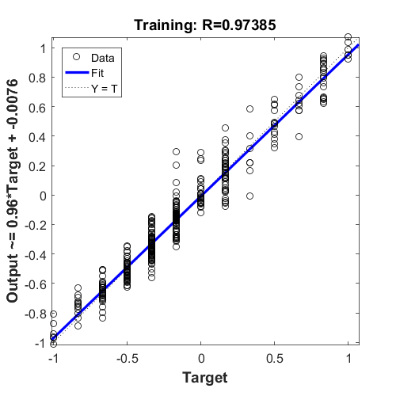

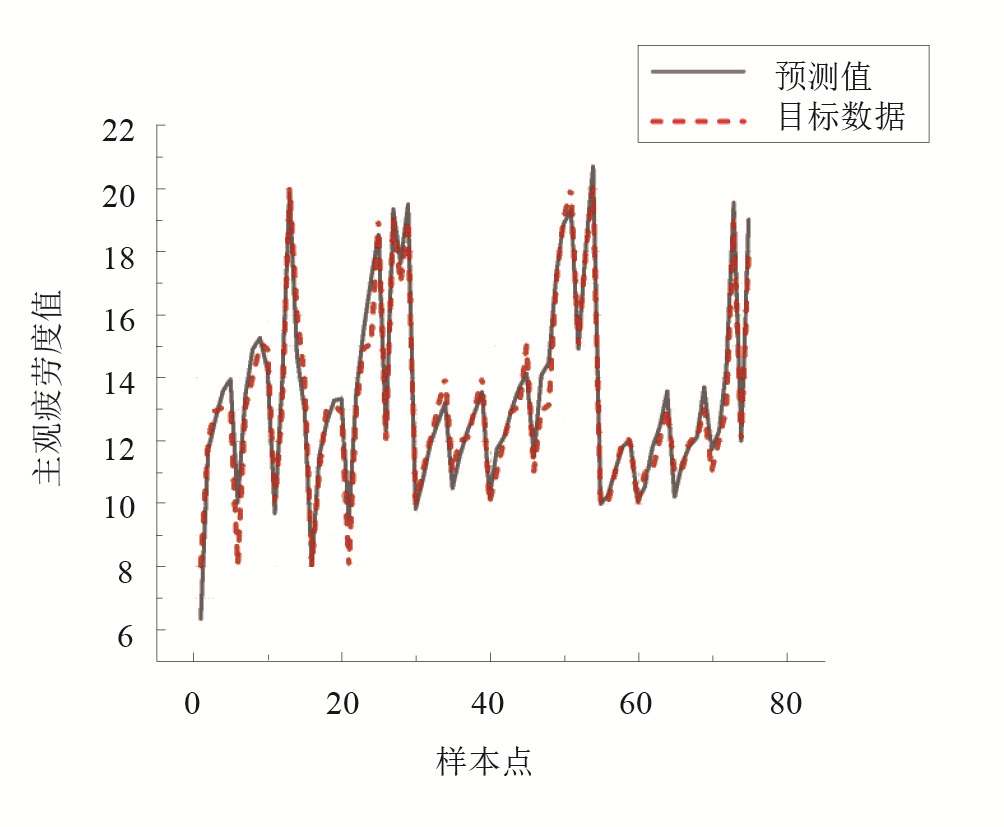

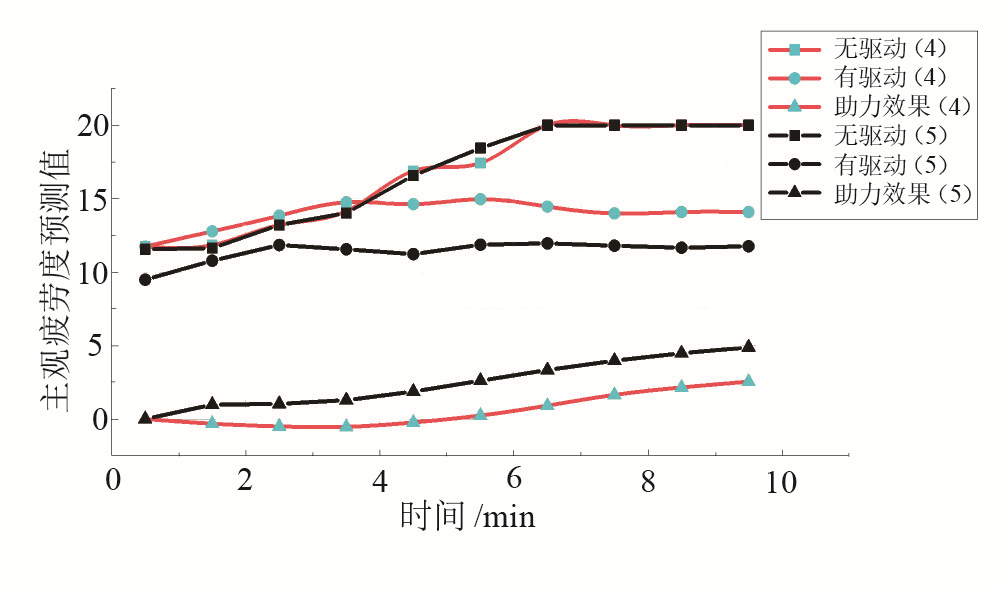

结果模型预测值与目标值的相关性r = 0.974，并有效预测了不同样机的助力效果。

结论结合抓握强度、抓握对象参数和人体肌电建立预测手部疲劳度的BP神经网络模型，可用来评估舱外手套外骨骼和其他手部助力装置的助力效果。

关键词: 手套外骨骼, 出舱活动, 手, 疲劳, 神经网络, 评估

Abstract:

Objective To establish a multi index fusion hand grip fatigue prediction model to evaluate the power-assisted effect of the glove exoskeleton prototype for extravehicular clothing.

Methods BP neural network algorithm was used to establish a hand fatigue prediction model. The related factors of hand fatigue were determined with isometric grasping fatigue experiment, and the input variables of BP neural network were determined as cylinder diameter, grasping force, grasping duration and root mean square of electromyography. The fatigue data corresponding to variables of each group were obtained through experiments and subjective fatigue measurement scales, and a fatigue evaluation model based on multi-source fusion of BP neural network algorithm was established. The relationship model between fatigue and assistance effect was established, and the assistance effect of the exoskeleton prototype was evaluated through the degree of fatigue relief.

Results The correlation coefficient was 0.974 between the predicted results of the model and the target value. Moreover, it effectively predicted the assistance effect of different prototypes.

Conclusion The BP neural network model established by combining the grasping strength, grasping object parameters and human electromyography can predict hand fatigue, which can be used to evaluate the assistance effect of glove exoskeleton and other hand aids.

Key words: glove exoskeleton, extravehicular activity, hand, fatigue, neural network, evaluation

中图分类号:

R852.8

张瑞明, 王凯, 尹锐, 王海亮, 莫言. 失重条件下舱外手套外骨骼助力效果的评估方法[J]. 《中国康复理论与实践》, 2023, 29(7): 856-861.

ZHANG Ruiming, WANG Kai, YIN Rui, WANG Hailiang, MO Yan. Evaluation method of assistance effect of extravehicular activity glove exoskeleton under weightlessness[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2023, 29(7): 856-861.

图/表 8

表1

图1

图2

图3

图4

图5

图6

图7

参考文献 17

[1]	BISHU R R, KLUTE G. The effects of extra vehicular activity (EVA) gloves on human performance[J]. Int J Industr Ergonomics, 1995, 16(3): 165-174.
[2]	ROGERS J M, PETERS B J, LASKE E A, et al. Development and test of robotically assisted extravehicular activity gloves[C]. Charleston, SC: International Conference on Environmental Systems, 2017.
[3]	ARGUBI-WOLLESEN A, WOLLESEN B, LEITNER M, et al. Human body mechanics of pushing and pulling: analyzing the factors of task-related strain on the musculoskeletal system[J]. Safety Health Work, 2017, 8(1): 11-18.
[4]	DUNBAR B J, CHAPATES P J. Comparison of 3D photogrammetric and laser hand scans to manual measurement methods for EVA glove fabrication[C]. IEEE Aerospace Conference, 2019.
[5]	VIEGAS S F, WILLIAMS D, JONES J, et al. Physical demands and injuries to the upper extremity associated with the space program[J]. J Hand Surg, 2004, 29(3): 359-366.
[6]	RAWAL S, MADHUBALAN A, MANIKANDAN P, et al. Study on the design of space gloves and EVA suits with future challenges[J]. Textile Leather Rev, 2022, 5: 18-30. doi: 10.31881/TLR
[7]	DIFTLER M A, IHRKE C A, BRIDGWATER L B, et al. RoboGlove: a grasp assist device for earth and space[C]. Bellevue, WA: International Conference on Environmental Systems, 2015.
[8]	BADGER J M, STRAWSER P, FARRELL L, et al. Robonaut 2 and Watson: cognitive dexterity for future exploration[C]. IEEE Aerospace Conference, 2018.
[9]	PALACIOS P, CORNEJO J, RIVERA M V, et al. Biomechatronic embedded system design of sensorized glove with soft robotic hand exoskeleton used for Rover Rescue Missions on Mars[C]. IEEE International IOT, Electronics and Mechatronics Conference (IEMTRONICS), 2021.
[10]	西安交通大学. 一种航天员舱外活动手部助力外骨骼:CN202011405107.6[P]. 2021-04-02.
[11]	葛树旺, 陈松林, 付圣灵, 等. 手臂静态姿势负荷的肌电实验研究[J]. 工业卫生与职业病, 2008, 34(4): 220-223.
	GE S W, CHEN S L, FU S L, et al. Experimental electromyography estimation of intramuscular load of the upper limb in static postures[J]. Industr Hygiene Occup Dis, 2008, 34(4): 220-223.
[12]	周前祥, 谌玉红, 马超, 等. 基于sEMG信号的操作者上肢肌肉施力疲劳评价模型研究[J]. 中国科学:生命科学, 2011, 41(8): 608-614.
[13]	O'HARA J M, BRIGANTI M, CLELAND J, et al. Extravehicular activities limitations study.Volume 2: Establishment of physiological and performance criteria for EVA gloves[R/OL]. (1988-01-01) [2023-01-29]. https://ntrs.nasa.gov/citations/19890008022.
[14]	MADDEN K E, DESHPANDE A D, PETERS B J, et al. The influence of robotic assistance on reducing neuromuscular effort and fatigue during extravehicular activity glove use[C]. Charleston, SC: International Conference on Environmental Systems (ICES), 2017.
[15]	MADDEN K E, DJURDJANOVIC D, DESHPANDE A D. Monitoring human neuromusculoskeletal system performance during spacesuit glove use: a pilot study[C]. IEEE Aerospace Conference, 2018.
[16]	丁立, 杨锋, 陈守平, 等. 手动作业疲劳的力学评价方法研究[J]. 航天医学与医学工程, 2006, 19(5): 363-367.
	DING L, YANG F, CHEN S P, et al. Research of biomechanical evaluation evaluation methonds of hand performance fatigue[J]. Space Med Med Eng, 2006, 19(5): 363-367.
[17]	王雨, 王春慧, 周诗华, 等. 舱外活动作业类型及操作动作对航天员手操作能力的要求分析[C]. 第十二届人-机-环境系统工程大会论文集, 2012: 22-26.
	WANG Y, WANG C H, ZHOU S H, et al. Requirement of hand performances for EVA task[C]. the 12th Conference on Man-Machine-Environment System Engineering, 2012: 22-26.

变量	协方差的绝对值
d	3.4948
F	0.7878
t	10.0736
RMS	0.0839
iEMG	0.0614
MPF	0
