吞咽障碍患者环咽肌的精准解剖学定位

doi:10.3969/j.issn.1006-9771.2021.03.008

《中国康复理论与实践》 ›› 2021, Vol. 27 ›› Issue (3): 297-301.doi: 10.3969/j.issn.1006-9771.2021.03.008

吞咽障碍患者环咽肌的精准解剖学定位

葛微微,杨扬,王孝文()

潍坊医学院康复医学院，山东潍坊市 261000

收稿日期:2020-07-19 修回日期:2020-09-26 出版日期:2021-03-25 发布日期:2021-04-02
通讯作者: 王孝文 E-mail:wangxiaowen2003@126.com
作者简介:葛微微(1994-)，女，汉族，安徽淮北市人，硕士研究生，主要研究方向：康复医学与理疗学|王孝文，博士，主任医师、副教授。
基金资助:
潍坊医学院教研课题实践教学改革与研究专项(2019ZXSJ001);山东省大学生创新创业训练计划项目(S201910438021S);潍坊医学院大学生科技创新基金项目(KX2019058)

Anatomical Location of Cricopharyngeus in Patients with Swallowing Disorder

Wei-wei GE,Yang YANG,Xiao-wen WANG()

Department of Rehabilitation, Weifang Medical University, Weifang, Shandong 261000, China

Received:2020-07-19 Revised:2020-09-26 Published:2021-03-25 Online:2021-04-02
Contact: Xiao-wen WANG E-mail:wangxiaowen2003@126.com
Supported by:
Weifang Medical University Practice Teaching Reform and Research Project(2019ZXSJ001);Shandong University Students Innovation and Entrepreneurship Training Program(S201910438021S);Weifang Medical University Students Science and Technology Innovation Fund(KX2019058)

摘要/Abstract

摘要： 目的

进一步明确环咽肌在人体的定位。

方法

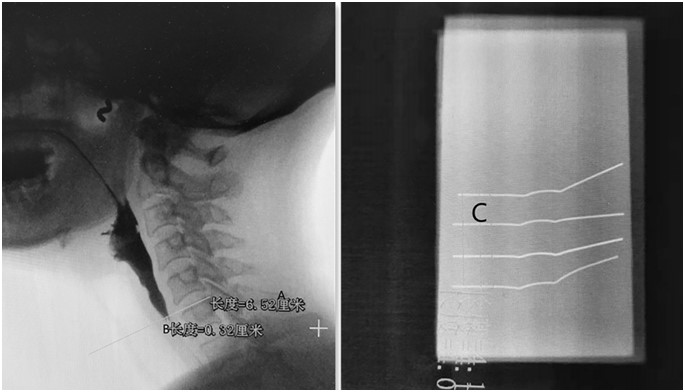

2018年9月至2019年12月，对19例吞咽障碍患者行透视荧光吞咽检查(VFSS)并保存视频，采用Uniweb 4.0软件对视频行环咽肌相对位置测量。建立成人颈部结构水模型，还原真人吞咽功能检查场景，得到实际测量值与计算机测量值的缩放比例，获得相对精确环咽肌实际位置。对6例成人标本进行解剖，以拟治疗平面与环咽肌长轴的交点为原点，以水平轴为X轴，矢状轴为Y轴，精确定位环咽肌。

结果

VFSS示环咽肌位于C₆椎附近；水模型测量值与计算机测量值的缩放比例约为1∶1.340。拟治疗平面为平C₆椎体上缘；在甲状腺外侧缘，皮肤表面距环咽肌(33.47±2.21) mm，与矢状面夹角(43.37±1.34)°；在颈内静脉内侧缘，皮肤表面距环咽肌(34.59±1.29) mm，与矢状面夹角(46.32±0.93)°。

结论

获得环咽肌较精准的位置信息，可为临床环咽肌功能障碍的康复提供参考。

关键词: 环咽肌, 透视荧光吞咽检查, 解剖定位

Abstract: Objective

To further clarify the location of cricopharyngeus in human body.

Methods

From September, 2018 to December, 2019, 19 inpatients with swallowing disorders received video fluoroscopic swallowing study (VFSS).The videoes were used to measure the position of cricopharyngeus with Uniweb 4.0 software. Water model simulating the structure of an adult's neck was established to restore the real measurement scene, and obtain the scale ratio between the actual measurement and the computer measurement, then obtain the accurate actual position of the cricopharyngeus. Six adult specimens were dissected. The intersection point of the intended treatment plane and the long axis of cricopharyngeus was taken as the origin, the horizontal axis as X axis, and the sagittal axis as Y axis, to locate the position of cricopharyngeus precisely.

Results

Cricopharyngeus was closest to the sixth cervical vertebra. The scaling ratio of the actual measurement obtained from the water model to the computer measurement was about 1∶1.340. The intended treatment plane was closest to the upper edge of the sixth cervical vertebra; on lateral edge of thyroid, cricopharyngeus was (33.47±2.21) mm deep to epidermis, with the angle of (43.37±1.34)° to sagittal axis; and it was (34.59±1.29) mm and (46.32±0.93)° on medial edge of internal jugular vein.

Conclusion

The the accurate location of cricopharyngeus in human body has been measured, which can help for the rehabilitation for cricopharyngeal dysfunction.

Key words: cricopharyngeus, video fluoroscopic swallowing study, anatomical location

中图分类号:

R743.3

葛微微,杨扬,王孝文. 吞咽障碍患者环咽肌的精准解剖学定位[J]. 《中国康复理论与实践》, 2021, 27(3): 297-301.

Wei-wei GE,Yang YANG,Xiao-wen WANG. Anatomical Location of Cricopharyngeus in Patients with Swallowing Disorder[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2021, 27(3): 297-301.

图/表 3

参考文献 34

1	赵威,郑忠青,郭海英,等. 经口内镜下肌切开术与球囊扩张治疗贲门失弛缓症的对照研究[J]. 中华消化杂志, 2016, 36(9): 577-581.
	Zhao W, Zheng Z Q, Guo H Y. Control study of peroral endoscopic myotomy and pneumatic dilation in patients with primary achalasia [J]. Chin J Dig, 2016, 36(9): 577-581.
2	Perry L, Love C P. Screening for dysphagia and aspiration in acute stroke: a systematic review [J]. Dysphagia, 2001, 16: 72-81.
3	中国吞咽障碍康复评估与治疗专家共识组. 中国吞咽障碍康复评估与治疗专家共识(2013年版)[J]. 中华物理医学与康复杂志, 2013, 35(12): 491-492.
	Group of Consensus of Experts on Rehabilitation Assessment and Treatment of Swallowing Disorders in China [J]. Chin J Phys Med Rehabil, 2013, 35(12): 491-492.
4	Meng N H, Wang T G, Lien I N. Dysphagia in patients with brainstem stroke: incidence and outcome [J].Am J Phys Med Rehabil, 2000, 79(2): 170-175.
5	杨初燕,冯珍,于国华. 脑干卒中后吞咽障碍的康复治疗[J]. 中华物理医学与康复杂志, 2009, 31(12): 863.
	Yang C Y, Feng Z, Yu G H. Chin J Phys Med Rehebil, 2009, 31(12): 863.
6	Kocdor P, Siegel E R, Tulunay Ugur O E. Cricopharyngeal dysfunction: a systematic review comparing outcomes of dilatation, botulinum toxin injection, and myotomy [J]. Laryngoscope, 2016, 126(1): 135-141.
7	尤爱民,胡志刚,郭珈妤. 球囊扩张配合门德尔松手法治疗脑干病变后环咽肌功能障碍的疗效观察[J]. 中国康复医学杂志, 2017, 32(10): 1178-1180.
	You A M, Hu Z G, Guo J Y. Chin J Rehabil Med, 2017, 32(10): 1178-1180.
8	Jean A. Brain stem control of swallowing: neuronal networks and cellular mechanisms [J]. Physiol Rev, 2001, 81: 929-969.
9	胡佑红,卫小梅,窦祖林. 导管球囊扩张治疗环咽肌功能障碍的机制[J]. 中华脑科疾病与康复杂志(电子版), 2011, 1(1): 82-87.
	Hu Y H, Wei X M, Dou Z L. Mechanisms of catheter balloon dilatation therapy for cricopharyngeal dysfunction [J]. Chin J Brain Dis Rehabil (Electr Ed), 2011, 1(1): 82-87.
10	Ertekin C, Aydogdu I, Yuceyar N, et al. Pathophysiological mechanisms of oropharyngeal dysphagia in amyotrophic lateral sclerosis [J]. Brain, 2000, 123: 125-140.
11	Prosiegel M, Holing R, Heintze M, et al. The localization of central pattern generators for swallowing in humans:a clinical-anatomical study on patients with unilateral paresis of the vagal nerve, Avellis' syndrome,Wallenberg's syndrome, posterior fossa tumours and cerebellar hemorrhage [J]. Acta Neurochir, 2005, 93: 85-88.
12	Ertekin C, Aydogdu I, Tarlact S, et al. Mechanism of dysphagia in suprabulbar palsy with lacunar infarct [J]. Stroke, 2000, 31: 1370-1376.
13	张婧. 延髓背外侧综合征所致吞咽障碍的特点及相关机制[J]. 中华物理医学与康复杂志, 2006, 2(11): 770-773.
	Zhang J. The characteristics and mechanisms of dysphagia in patients with dorsolateral medullary syndrome [J]. Chin J Phys Med Rehebil, 2006, 2(11): 770-773.
14	Lowell S Y, Poletto C J, Knrr-Cung B R, et al. Sensory stimulation activates both motor and sensory components of the swallowing system [J]. NeuroImage, 2008, 42: 285-295.
15	曲玉娟,侯莹,岳寿伟. 超声引导下食管上功能障碍区肉毒毒素注射应用探讨[J]. 中华医学超声杂志(电子版), 2019, 16(11): 838-840.
	Qu Y J, Hou Y, Yue S W. Chin J Med Ultrasound (Electr Ed), 2019, 16(11): 838-840.
16	Kelly E A, Koszewski I J, Jaradeh S S. Botulinum toxin injection for the treatment of upper esophageal sphincter dysfunction [J]. Ann Oto Rhinol Laryn, 2013, 122(2): 100-108.
17	Ahsan S F, Meleca R J, Dworkin J P. Botulinum toxin injection of the cricopharyngeus muscle for the treatment of dysphagia [J]. Otolaryngology Head Neck Surg, 2000, 122(5): 691-695.
18	Alfonsi E, Restivo D A, Cosentino G. Botulinum toxin is effective in the management of neurogenic dysphagia. Clinical-electrophysiological findings and tips on safety in different neurological disorders [J]. Front Pharmacol, 2017, 8(5886): 80-90.
19	Kim M S, Kim G W, Rho Y S, et al. Office-based electromyography-guided Botulinum toxin injection to the cricopharyngeus muscle:optimal patient selection and technique [J]. Ann Otol Rhinol Laryngol, 2017, 126(5): 349-356.
20	岳寿伟,怀娟,关家文,等. 食管球囊造影联合CT引导下环咽肌肉毒毒素注射治疗脑干损伤后吞咽障碍1例报告[J]. 中国康复医学杂志, 2017, 32(9): 1046-1048.
	Yue S W, Huai J, Guan J W, et al. Chin J Rehabil Med, 2017, 32(9): 1046-1048.
21	林晓婷,杨海云,栗晓,等. 超声引导肉毒毒素注射治疗环咽肌功能障碍探讨[J]. 中山大学学报(医学版), 2018, 39(3): 472-476.
	Lin X T, Yang H Y, Li X, et al. Therapeutic effects of ultrasound-guided injection of Botulinum toxin type A into the cricopharyngeus muscle for cricopharyngeal dysfunction [J]. J Sun Yat-sen Univ (Med Ed), 2018, 39(3): 472-476.
22	马超,杨海云. 超声引导慢性疼痛注射技术[M]. 北京:人民卫生出版社, 2016: 35-40.
	Ma C, Yang H Y. Ultrasound-guided Injection for Chronic Pain[M]. Beijing: People's Medical Publishing House, 2016: 35-40.
23	Epis O, Bruschi E. Interventional ultrasound: a critical overview on ultrasound-guided injections and biopsies [J]. Clin Exp Rheumatol, 2014, 32(1): 78-84.
24	张学敏,毕胜,许亚飞. 超声引导下A型肉毒毒素注射治疗脑干梗死环咽肌失弛缓症1例报告[J]. 中国康复医学杂志, 2019, 34(2): 216-218.
	Zhang X M, Bi S, Xu Y F. Chin J Rehabil Med, 2019, 34(2): 216-218.
25	Alberty J, Oelerish M, Ludwing K, et al. Efficacy of botulinum toxin A for treatment of upper esophageal sphincter dysfunction [J]. Laryngoscope, 2000, 110: 1151-1156.
26	Sharma S D, Kumar G, Eweiss A, et al. Endoscopic-guided injection of Botulinum toxin into the cricopharyngeus muscle: our experience [J]. J Laryngol Otol, 2015, 129(10): 990-995.
27	罗素玲,陈伟雄,张剑利,等. 磁共振成像动态扫描对吞咽功能正常者咽收缩及环咽肌功能的研究[J]. 中华耳鼻咽喉头颈外科杂志, 2016, 2(51): 100-104.
	Luo S L, Chen W X, Zhang J L, et al. Study on the pharyngeal constriction and function of cricopharyngeal muscle in normal persons using dynamic magnetic resonance imaging [J]. Chin J Otorhinolaryngology Head Neck Surg, 2016, 2(51): 100-104.
28	窦祖林,兰月,于帆. 吞咽造影数字化分析在脑干卒中后吞咽障碍患者疗效评估中的应用[J]. 中国康复医学杂志, 2013, 28(9): 799-805.
	Dou Z L, Lan Y, Yu F. Application of videofluoroscopy digital analysis in swallowing function assessment for brainstem strok patients with dysphagia [J]. Chin J Rehabil Med, 2013, 28(9): 799-805.
29	刘锟. 吞咽和咽食管段运动功能障碍的研究进展[J]. 中国胸心血管外科临床杂志, 2000, 7(3): 191-193.
	Liu K. Chin J Clin Thorac Cardiovasc Surg, 2000, 7(3): 191-193.
30	Goyal R K, Martin S B, Shaprio J, et al. The role of circopharyngeus muscle in pharyngoesophageal disorders [J]. Dysphagia, 1993, 8: 252-258.
31	李辉. 食管功能障碍性疾病[M]. 北京:人民卫生出版社, 1999: 208-210.
	Li H. Esophageal Dysfunction Disease [M]. Beijing: People's Medical Publishing House, 1999: 208-210.
32	王修敏,夏清. 环咽肌失弛缓症与环咽肌功能障碍辨析[J]. 中华物理医学与康复杂志, 2016, 38(12): 958-960.
	Wang X M, Xia Q. Chin J Phys Med Rehebil, 2016, 38(12): 958-960.
33	Ertekin C, Aydogdu I. Electromyography of human cricopharyngeal muscle of the upper esophageal sphincter [J]. Muscle Nerve, 2002, 26(6): 729-739.
34	郭钢花,李哲,关晨霞,等. 电视透视吞咽检查指导吞咽障碍康复治疗的疗效观察[J]. 中华物理医学与康复杂志, 2010, 32(1): 22-23.
	Guo G H, Li Z, Guan C X, et al. Videofluoroscopic swallowing study in planning dysphagia treatment [J]. Chin J Phys Med Rehebil, 2010, 32(1): 22-23.

病例	至C₆上缘距离	至C₆下缘距离
平均	3.443±1.885	3.985±2.334
1	1.117	7.562
2	1.343	6.747
3	1.268	6.832
4	1.013	7.381
5	2.671	5.785
6	2.884	4.569
7	2.486	3.280
8	2.678	2.827
9	2.654	6.891
10	3.882	2.284
11	4.543	2.006
12	2.251	6.964
13	3.390	2.205
14	4.323	1.744
15	4.157	1.931
16	5.779	1.610
17	7.547	1.503
18	3.810	2.064
19	7.623	1.528
