基于三自由度模型的电动轮椅操纵稳定性优化与仿真

doi:10.3969/j.issn.1006-9771.2023.04.002

《中国康复理论与实践》 ›› 2023, Vol. 29 ›› Issue (4): 381-389.doi: 10.3969/j.issn.1006-9771.2023.04.002

基于三自由度模型的电动轮椅操纵稳定性优化与仿真

朱长建¹, 郑邵骑¹^,²(), 贡智兵³, 柯旭³, 赵有鹏¹^,²

1.南京工程学院康尼机电产业研究院，江苏南京市 211167
2.南京康尼机电股份有限公司研究生工作站，江苏南京市 210013
3.南京康尼机电股份有限公司集团技术中心，江苏南京市 210013

收稿日期:2022-09-13 修回日期:2022-11-08 出版日期:2023-04-25 发布日期:2023-05-19
通讯作者: 郑邵骑，E-mail： y00450200404@njit.edu.cn
作者简介:朱长建(1973-)，男，汉族，安徽颍上县人，硕士，研究员、高级工程师，硕士研究生导师，主要研究方向：新能源汽车、智能大健康装备。

Optimization and simulation of maneuverability and stability of electric wheelchair based on three degrees of freedom model

ZHU Changjian¹, ZHENG Shaoqi¹^,²(), GONG Zhibing³, KE Xu³, ZHAO Youpeng¹^,²

1. Kangni Mechanical & Electrical Industry Research Institute, Nanjing Institute of Engineering, Nanjing, Jiangsu 211167, China
2. Graduate Workstation of Nanjing Kangni Mechanical & Electrical Co., Ltd., Nanjing, Jiangsu 210013, China
3. Group Technology Center, Nanjing Kangni Mechanical & Electrical Co., Ltd., Nanjing, Jiangsu 210013, China

Received:2022-09-13 Revised:2022-11-08 Published:2023-04-25 Online:2023-05-19
Contact: ZHENG Shaoqi, E-mail: y00450200404@njit.edu.cn

摘要/Abstract

摘要：

目的提出一种电动轮椅三自由度模型，旨在优化轮椅转向时的操纵稳定性。
方法基于二自由度车辆模型，同时考虑车身惯性和侧向风的影响，引入转向行驶时的轮椅侧倾角，建立轮椅三自由度转向模型。分别对不同工况下电机角速度输入的侧向速度、质心侧偏角、横摆角速度和车身侧倾角响应进行仿真分析，以KS2电动轮椅为例设计轮椅转向实验，验证模型的合理性和可行性，以及该模型算法对轮椅操纵稳定性的优化效果。
结果加入三自由度模型算法的电动轮椅操纵稳定性能得到显著提高，响应曲线更加平滑。仿真结果表明，轮椅左右电机转向相同时，|V_L-V_R|/t越小操纵稳定性越好；|V_L-V_R|/t相同时，电机反向转动具有更好的转向机动性，但是操纵稳定性也随之降低。
结论仿真分析与实验结果具有较好的一致性，验证该模型具有合理性和可行性，该模型算法可以较好优化电动轮椅的操纵稳定性，可普遍适用于研究和分析不同轮椅转向时的操纵稳定性。

关键词: 电动轮椅, 三自由度模型, 优化, 仿真, 操纵稳定性

Abstract:

Objective To propose a three-degree-of-freedom model of electric wheelchair, to optimize the steering stability of the wheelchair.
Methods Based on the two degrees of freedom vehicle model and considering the influence of body inertia and lateral wind, the wheelchair roll angle was introduced to establish the three degrees of freedom steering model of wheelchair. The lateral velocity, centroid sideslip angle, yaw rate and body roll angle response of the motor angular velocity input under different working conditions were simulated and analyzed respectively. Taking KS2 electric wheelchair as an example, the wheelchair steering experiment was designed to verify the rationality and feasibility of the model, and the optimization effect of the model algorithm on the wheelchair handling and stability.
Results The maneuverability and stability of the electric wheelchair with three degrees of freedom model algorithm were significantly improved, and the response curve was smoother. The smaller the |V_L-V_R|/t was, the better the handling stability was when the left and right motors of the wheelchair had the same steering direction. When |V_L-V_R|/t was the same, the steering maneuverability was better on the reverse rotation of the motor, but the handling stability also decreased.
Conclusion The simulation analysis is in good agreement with the experimental results, which verifies that the model is reasonable and feasible. The model algorithm can better optimize the handling stability of electric wheelchairs, and can be generally applied to study and analyze the handling stability of different wheelchairs when they turn.

Key words: electric wheelchair, three degrees of freedom model, optimization, simulation, handling stability

中图分类号:

R496

朱长建, 郑邵骑, 贡智兵, 柯旭, 赵有鹏. 基于三自由度模型的电动轮椅操纵稳定性优化与仿真[J]. 《中国康复理论与实践》, 2023, 29(4): 381-389.

ZHU Changjian, ZHENG Shaoqi, GONG Zhibing, KE Xu, ZHAO Youpeng. Optimization and simulation of maneuverability and stability of electric wheelchair based on three degrees of freedom model[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2023, 29(4): 381-389.

图/表 11

图1

图2

图3

表1

参数注释"

符号	参数名称	单位	数值
m	轮椅整车质量	kg	96.000
v_x	轮椅侧向速度	m/s
v_y	轮椅纵向速度	m/s
ω_l	左轮毂电机角速度	rad/s
ω_r	右轮毂电机角速度	rad/s
ω	轮椅横摆角速度	rad/s
L	轮椅轴距	m	0.830
B	轮椅轮距	m	0.615
r	轮椅驱动轮半径	m	0.160
R	轮椅转向半径	m
m_s	轮椅簧载质量	Kg	35.000

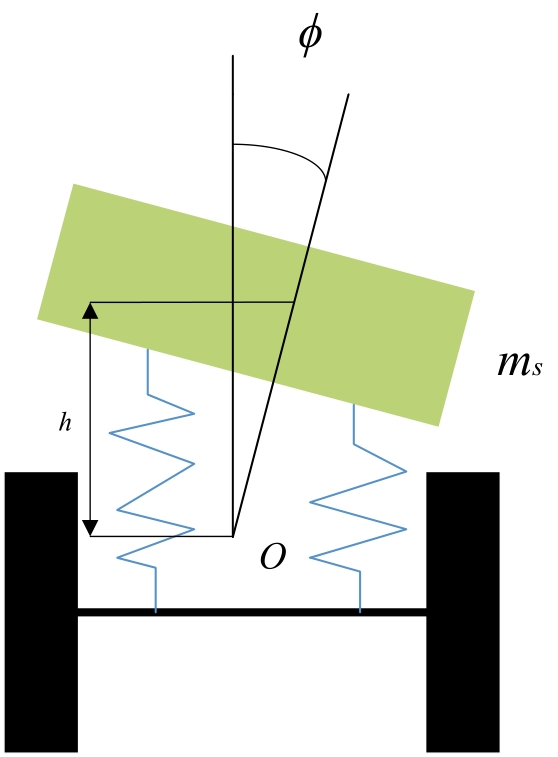

h	簧载质心到侧倾轴的距离	m	0.300
ϕ	轮椅车身侧倾角	rad
β	质心侧偏角	rad
δ	轮椅前轮转角	rad
Y_β	单位轮椅侧偏角引起的地面侧向反作用力	N/rad
Y_ω	单位横摆角速度引起的地面侧向反作用力	N·s/rad
Y_ϕ	单位侧倾角引起的地面侧向反作用力	N/rad
Y_δ	单位前轮转角引起的地面侧向反作用力	N/rad
I_z	车身绕z轴转动惯量	kg·m²	48.000
I_xz	轮椅质量对x轴对z轴的惯性积	kg·m²	0
N_β	单位质心侧偏角产生的对z轴的力矩	N·m/rad
N_ω	单位横摆角速度产生的对z轴的力矩	N·m·s/rad
N_ϕ	单位侧倾角速度产生的对z轴的力矩	N·m·s/rad
N_δ	单位前轮转角产生的对z轴的力矩	N·m/rad
N_P	单位侧倾角速度产生的对z轴的力矩	N·m·s/rad
_sI_x	悬挂质量对x轴的转动惯量	kg·m²	20.000
L_ϕ	单位侧倾角产生的对x轴的外力矩	N·m/rad
L_P	单位侧倾角速度产生的对x轴的外力矩	N·m·s/rad	68.000
k₁	前轮侧偏刚度(一个车轮)	N/rad	323.000
k₂	后轮侧偏刚度(一个车轮)	N/rad	769.000
a	重心至前轴距离	m	0.420
b	重心至后轴距离	m	0.410
C_ϕ1	前悬架侧倾角刚度	N·m/rad	478.000
C_ϕ2	后悬架侧倾角刚度	N·m/rad	922.000
$∂ α 1 ∂ ϕ$	前轴侧倾转向系数		-0.114
Lp1	单位侧倾角速度在前减震器产生的阻力矩	N·m·s/rad	3432.000
Lp2	单位侧倾角速度在后减震器产生的阻力矩	N·m·s/rad	3432.000

表1

图4

图5

图6

图7

图8

图9

图10
