基于结构协变网络探索卒中后失语结构损伤特征

doi:10.3969/j.issn.1006-9771.2022.10.010

Abstract

Abstract:

Objective To investigate the abnormal changes of gray matter structure covariant network in post-stroke aphasia (PSA) patients.

Methods From June, 2019 to March, 2022, 15 PSA patients (patient group) from Dongzhimen Hospital, Beijing University of Chinese Medicine and Beijing Bo'ai Hospital were recruited, as well as 15 healthy subjects (control group). Their brain structure magnetic resonance imaging data were collected. The brain covariant network was constructed based on gray matter volume correlation, and graph theory analysis method was used to evaluate the global and node network level topology properties of structural covariant network. The differences of gray matter covariant network properties between patients and controls were compared.

Results There was no significant difference in the global network level topology properties between two groups (P> 0.05). At the nodal level, compared with the control group, the betweenness decreased in the right middle frontal gyrus, right posterior cingulate gyrus, right amygdala, left middle occipital gyrus, and increased in the right inferior frontal gyrus and the right suboccipital gyrus of the insula operculum (P < 0.05); the node degree decreased in the left superior frontal gyrus, left anterior cingulate and paracingulate gyrus, left hippocampus and left amygdala, while it increased in the right inferior frontal gyrus, left supplementary motor area, right superior occipital gyrus, right inferior occipital gyrus, and right lentiform pallidus (P< 0.05); the node efficiency decreased in the left anterior cingulate and paracingulate gyrus, left hippocampus, left amygdala, left temporal pole: superior temporal gyrus, and increased in the inferior frontal gyrus of right insula, left supplementary motor area and right suboccipital gyrus (P< 0.05).

Conclusion The abnormal reduction of node network properties in some brain regions in the left hemisphere of PSA patients may be a characteristic structural covariation pattern, and there may be some compensation in the right hemisphere of the structural network in some brain regions.

Key words: post-stroke aphasia, structural covariance network, graph theoretical analysis, grey matter structure

CLC Number:

R743.3

ZHOU Yufan,XU Minjie,TAN Yihai,MA Ya'nan,REN Qiaosheng,CHEN Jian,ZHANG Qingsu,WANG Bo,HE Yi,CHANG Jingling. Characteristics of post-stroke aphasia structural damage based on structural covariance network[J]. 《Chinese Journal of Rehabilitation Theory and Practice》, 2022, 28(10): 1198-1204.

Figures/Tables 8

References 37

[1]	中华医学会神经病学分会神经康复学组, 中国康复医学会脑血管病专业委员会, 中国康复研究中心. 卒中后失语临床管理专家共识[J]. 中国康复理论与实践, 2022, 28(1): 15-23.
	Neurologic Rehabilitation Studies Group of Neurology Branch of Chinese Medical Association, Cerebrovascular Diseases Committee of Chinese Association Rehabilitation Medicine, China Rehabilitation Research Centre. Consensus on Clinical Management of Post-stroke Aphasia[J]. Chin J Rehabil Theory Pract, 2022, 28(1): 15-23.
[2]	Collaborators GBD-2016-Stroke. Global, regional, and national burden of stroke, 1990-2016: a systematic analysis for the Global Burden of Disease Study 2016[J]. Lancet Neurol, 2019, 18(5): 439-458. doi: S1474-4422(19)30034-1 pmid: 30871944
[3]	BOEHME A K, MARTIN-SCHILD S, MARSHALL R S, et al. Effect of aphasia on acute stroke outcomes[J]. Neurology, 2016, 87(22): 2348-2354. pmid: 27765864
[4]	KOYUNCU E, AM P, ALTNOK N, et al. Speech and language therapy for aphasia following subacute stroke[J]. Neural Regeneration Res, 2016, 11(10): 1591-1594. doi: 10.4103/1673-5374.193237
[5]	STEFANIAK J D, ALYAHYA R S, RALPH M A L. Language networks in aphasia and health: a 1000 participant activation likelihood estimation meta-analysis[J]. Neuroimage, 2021, 233: 117960.
[6]	HICKOK G, POEPPEL D. Dorsal and ventral streams: a framework for understanding aspects of the functional anatomy of language[J]. Cognition, 2004, 92(1): 67-99. doi: 10.1016/j.cognition.2003.10.011
[7]	WANG H, JIN X, ZHANG Y, et al. Single-subject morphological brain networks: connectivity mapping, topological characterization and test-retest reliability[J]. Brain Behavior, 2016, 6(4): e00448.
[8]	VAN OERS C A, VAN DER WORP H B, KAPPELLE L J, et al. Etiology of language network changes during recovery of aphasia after stroke[J]. Sci Rep, 2018, 8(1): 1-12.
[9]	MECHELLI A, FRISTON K J, FRACKOWIAK R S, et al. Structural covariance in the human cortex[J]. J Neurosci, 2005, 25(36): 8303-8310. doi: 10.1523/JNEUROSCI.0357-05.2005 pmid: 16148238
[10]	EVANS A C. Networks of anatomical covariance[J]. Neuroimage, 2013, 80(80): 489-504. doi: 10.1016/j.neuroimage.2013.05.054
[11]	THIEL A, VAHDAT S. Structural and resting-state brain connectivity of motor networks after stroke[J]. Stroke, 2015, 46(1): 296-301. doi: 10.1161/STROKEAHA.114.006307 pmid: 25477218
[12]	YAN S, ZHANG G, ZHOU Y, et al. Abnormalities of cortical morphology and structural covariance network in patients with subacute basal ganglia stroke[J]. Acad Radiol, 2022, 29(S3): S157-S165. doi: 10.1016/j.acra.2021.08.011
[13]	KIM H, SHIN J, HAN C E, et al. Using individualized brain network for analyzing structural covariance of the cerebral cortex in Alzheimer's patients[J]. Front Neurosci, 2016, 10: 394.
[14]	中华医学会神经病学分会, 中华医学会神经病学分会脑血管病学组. 中国急性缺血性脑卒中诊治指南2018[J]. 中华神经科杂志, 2018, 51(9): 666-682.
	Branch of Neurology, Chinese Medical Association; Chinese Stroke Society. Chin J Neurol, 2018, 51(9): 666-682.
[15]	中华医学会神经病学分会, 中华医学会神经病学分会脑血管病学组. 中国脑出血诊治指南(2014)[J]. 中华神经科杂志, 2015, 48(6): 435-444.
	Branch of Neurology, Chinese Medical Association; Chinese Stroke Society. Chin J Neurol, 2015, 48(6): 435-444.
[16]	ZHANG J, WANG J, WU Q, et al. Disrupted brain connectivity networks in drug-naive, first-episode major depressive disorder[J]. Biol Psychiatry, 2011, 70(4): 334-342. doi: 10.1016/j.biopsych.2011.05.018
[17]	KIRAN S, MEIER E L, JOHNSON J P. Neuroplasticity in aphasia: a proposed framework of language recovery[J]. J Speech Lang Hear Res, 2019, 62(11): 3973-3985. doi: 10.1044/2019_JSLHR-L-RSNP-19-0054
[18]	SHAH-BASAK P, SIVARATNAM G, TETI S, et al. Electrophysiological connectivity markers of preserved language functions in post-stroke aphasia[J]. Neuroimage Clin, 2022, 34: 103036.
[19]	WATTS D J, STROGATZ S H. Collective dynamics of 'small-world' networks[J]. Nature, 1998, 393(6684): 440-442. doi: 10.1038/30918
[20]	FREEMAN L C. A set of measures of centrality based on betweenness[J]. Sociometry, 1977: 35-41.
[21]	RUBINOV M, SPORNS O. Complex network measures of brain connectivity: uses and interpretations[J]. Neuroimage, 2010, 52(3): 1059-1069. doi: 10.1016/j.neuroimage.2009.10.003 pmid: 19819337
[22]	YU L, YU Y. Energy-efficient neural information processing in individual neurons and neuronal networks[J]. J Neurosci Res, 2017, 95(11): 2253-2266. doi: 10.1002/jnr.24131 pmid: 28833444
[23]	LIEBENTHAL E, SILBERSWEIG D A, STERN E. The language, tone and prosody of emotions: neural substrates and dynamics of spoken-word emotion perception[J]. Front Neurosci, 2016, 10: 506.
[24]	O'KEEFE J, BURGESS N, DONNETT J G, et al. Place cells, navigational accuracy, and the human hippocampus[J]. Philos Trans R Soc Lond B Biol Sci, 1998, 353(1373): 1333-1340. doi: 10.1098/rstb.1998.0287
[25]	VOITS T, ROBSON H, ROTHMAN J, et al. The effects of bilingualism on hippocampal volume in ageing bilinguals[J]. Brain Struct Funct, 2022, 227(3): 979-994. doi: 10.1007/s00429-021-02436-z pmid: 34985602
[26]	NAKAMURA K, INOMATA T, UNO A. Left amygdala regulates the cerebral reading network during fast emotion word processing[J]. Brain Struct Funct, 2020, 11: 1.
[27]	QU J, HU L, LIU X, et al. The contributions of the left hippocampus and bilateral inferior parietal lobule to form-meaning associative learning[J]. Psychophysiology, 2021, 58(8): e13834.
[28]	MAGUIRE E, MULLALLY S. The hippocampus: a manifesto for change[J]. J Exp Psychol Gen, 2013, 142(4): 1180-1189. doi: 10.1037/a0033650 pmid: 23855494
[29]	YAN T, ZHUANG K, HE L, et al. Left temporal pole contributes to creative thinking via an individual semantic network[J]. Psychophysiology, 2021, 58(8): e13841.
[30]	PRICE C J. A review and synthesis of the first 20 years of PET and fMRI studies of heard speech, spoken language and reading[J]. Neuroimage, 2012, 62(2): 816-847. doi: 10.1016/j.neuroimage.2012.04.062 pmid: 22584224
[31]	VELDSMAN M, CHENG H, JI F, et al. Degeneration of structural brain networks is associated with cognitive decline after ischaemic stroke[J]. Brain Commun, 2020, 2(2): fcaa155.
[32]	MESULAM M, WIENEKE C, HURLEY R, et al. Words and objects at the tip of the left temporal lobe in primary progressive aphasia[J]. Brain, 2013, 136(2): 601-618. doi: 10.1093/brain/aws336
[33]	JENSEN-KONDERING U R, GHOBADI Z, WOLFF S, et al. Acoustically presented semantic decision-making tasks provide a robust depiction of the temporo-parietal speech areas[J]. J Clin Neurosci, 2012, 19(3): 428-433. doi: 10.1016/j.jocn.2011.04.038
[34]	STEFANIAK J D, HALAI A D, LAMBON RALPH M A. The neural and neurocomputational bases of recovery from post-stroke aphasia[J]. Nat Rev Neurol, 2020, 16(1): 43-55. doi: 10.1038/s41582-019-0282-1 pmid: 31772339
[35]	JUNG J, LAMBON RALPH M A. Mapping the dynamic network interactions underpinning cognition: a cTBS-fMRI study of the flexible adaptive neural system for semantics[J]. Cereb Cortex, 2016, 26(8): 3580-3590. doi: 10.1093/cercor/bhw149 pmid: 27242027
[36]	GEVA S, SCHNEIDER L M, ROBERTS S, et al. Right cerebral motor areas that support accurate speech production following damage to cerebellar speech areas[J]. Neuroimage Clin, 2021, 32: 102820.
[37]	GRIFFIS J C, NENERT R, ALLENDORFER J B, et al. Linking left hemispheric tissue preservation to fmri language task activation in chronic stroke patients[J]. Cortex, 2017, 96: 1-18. doi: S0010-9452(17)30288-5 pmid: 28961522

组别	n	性别(男/女)/n	年龄/岁	受教育年限/年
对照组	15	13/2	53.20±10.00	14.07±3.67
患者组	15	13/2	49.93±12.36	15.20±3.83
t/χ²值		0	0.795	0.826
P值		1	0.433	0.416

全局拓扑指标	对照组	患者组	实际差值	t值	P值
最短路径长度	0.927	0.938	0.010	0.096	0.938
集聚系数	0.274	0.281	0.008	0.447	0.518
全局效率	0.252	0.251	-0.001	-0.055	0.967
局部效率	0.336	0.347	0.011	0.587	0.376

脑区	MNI坐标			P值
脑区	X	Y	Z	P值
右侧眶部额中回	33.18	52.59	-10.73	0.044
右侧后扣带回	7.44	-41.81	21.87	0.007
右侧杏仁核	27.32	0.64	-17.5	0.002
左侧枕中回	-32.39	-80.73	16.11	0.009
右侧岛盖部额下回	50.2	14.98	21.41	0.028
右侧枕下回	38.16	-81.99	-7.61	0.025

脑区	MNI坐标			P值
脑区	X	Y	Z	P值

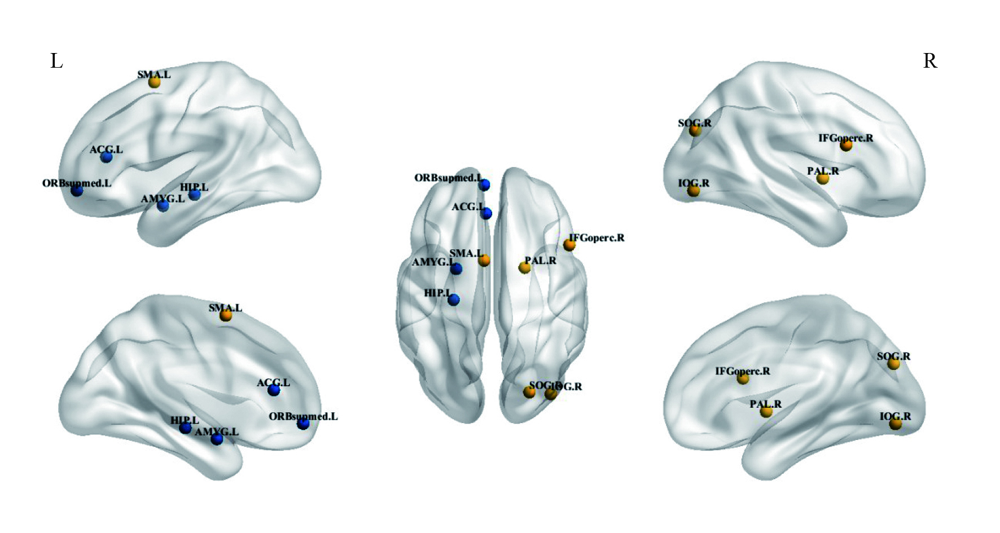

左侧眶内额上回	-5.17	54.06	-7.40	0.039
左侧前扣带和旁扣带脑回	-4.04	35.40	13.95	0.014
左侧海马	-25.03	-20.74	-10.13	0.015
左侧杏仁核	-23.27	-0.67	-17.14	0.038
右侧枕上回	24.29	-80.85	30.59	0.039
右侧枕下回	38.16	-81.99	-7.61	0.014
右侧岛盖部额下回	50.20	14.98	21.41	0.042
左侧补充运动区	-5.32	4.85	61.38	0.023
右侧豆状苍白球	21.20	0.18	0.23	0.044

脑区	MNI坐标			P值
脑区	X	Y	Z	P值
左侧前扣带和旁扣带脑回	-4.04	35.40	13.95	0.016
左侧海马	-25.03	-20.74	-10.13	0.002
左侧杏仁核	-23.27	-0.67	-17.14	0.039
左侧颞极：颞上回	-39.88	15.14	-20.18	0.025
右侧岛盖部额下回	50.20	14.98	21.41	0.046
左侧补充运动区	-5.32	4.85	61.38	0.035
右侧枕下回	38.16	-81.99	-7.61	0.008
