不同硬度地面对功能性踝关节不稳患者步态协调性的影响

doi:10.3969/j.issn.1006-9771.2024.03.013

Abstract

Abstract:

Objective To explore the influence of different hardness surfaces on gait coordination in patients with functional ankle instability (FAI).

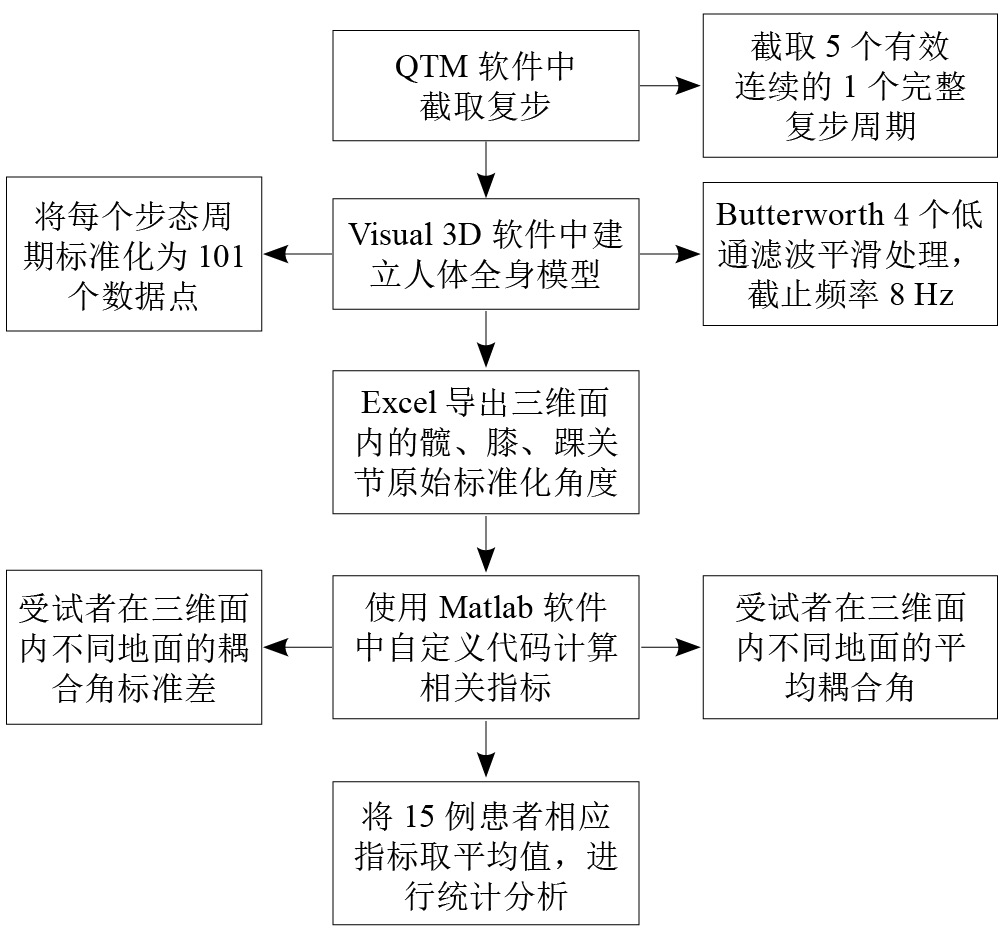

Methods Qualisys Infrared Optical Motion Capture System was used to test the coordination and variability of 15 FAI patients on the right side at Nanjing Normal University from May to July, 2023. The gait cycle data were collected and intercepted, and coupling angle (CA) and standard deviation of coupling angle (SDCA) were calculated by Matlab to compare the differences on different hardness surfaces.

Results On coronal plane, CA of hip-ankle joint was higher on the hard surface than on the soft surface during middle stage of support and early stage of swing, and lower on its rest stages and the gait stages of hip-knee joint and knee-ankle joint than on the soft surface (P < 0.01). On sagittal plane, CA of hip-ankle joint and knee-ankle joint was smaller on the hard surface than on the soft surface during middle and late stages of support, and larger than on the soft surface during their rest stages, and the gait stages of hip-knee joint (P < 0.01). On horizontal plane, CA of hip-knee joint was lower on the hard surface than on the soft surface during the late stage of support, and higher than on the soft surface during its early stage of swing and bearing stage of hip-ankle joint (P < 0.01). Compared with the hard surface, SDCA was smaller on the soft surface than on the hard surface only in the hip-ankle on the sagittal plane and during bearing stage of hip-knee joint, and was greater than on the hard surface for the rest (P < 0.01).

Conclusion FAI patients showed more distal dominance on soft surface than on hard surface during most gait cycle on 3D plane, i.e., advantage of ankle varus and plantar flexion increased, and advantage of hip joint decreased; the coordination variability was generally higher on soft surface than on hard surface. These findings suggested that FAI patients may increase the risk of recurrent lateral ankle sprain walking on soft surface.

Key words: functional ankle instability, surface hardness, gait, coordination mode, coordination variability

CLC Number:

R684.7

MA Qianfeng, LI Li, ZHANG Wei, DING Jian, XU Yilin, MAO Wenhui. Influence of different hardness surfaces on gait coordination in functional ankle instability[J]. Chinese Journal of Rehabilitation Theory and Practice, 2024, 30(3): 345-351.

Figures/Tables 5

Figure 1

Figure 2

Figure 3

Table 1

Table 2

References 28

[1]	杨扬, 刘劼, 王成伟, 等. 揿针配合手法治疗踝关节扭伤后遗症疗效观察[J]. 中国针灸, 2018, 38(6): 585-588.
	YANG Y, LIU J, WANG C W, et al. Effects of intradermal needling combined with tuina on ankle sprain sequelae[J]. Chin J Acupunct, 2018, 38(6): 585-588.
[2]	MITCHELL J, KIM H, SON S J, et al. Altered locomotive hip joint patterns in patients with chronic ankle instability[J]. Med Sci Sports Exerc, 2017, 49(5): 740-741.
[3]	KIM H, SON S J, SEELEY M K, et al. Kinetic Compensations due to chronic ankle instability during landing and jumping[J]. Med Sci Sports Exerc, 2018, 50(2): 308-317.
[4]	刘羽多, 万祥林. 本体感觉神经肌肉促进法和全身振动训练对FAI干预效果的比较[J]. 中国康复理论与实践, 2022, 28(7): 776-782. doi: 10.3969/j.issn.1006-9771.2022.07.006
	LIU Y D, WAN X L. Comparison of effects of proprioceptive neuromuscular facilitation and whole body vibration training on functional ankle instability[J]. Chin J Rehabil Theory Pract, 2019, 28(7): 776-782.
[5]	KOSHINO Y, ISHIDA T, YAMANAKA M, et al. Kinematics and muscle activities of the lower limb during a side-cutting task in subjects with chronic ankle instability[J]. J Knee Surg Sports Traumatol Arthrosc, 2016, 24: 1071-1080.
[6]	王佳伟, 刘晔. 不同高度跳深时髋、膝关节协调模式与下肢肌肉活动的关系[J]. 中国组织工程研究, 2023, 27(2): 276-281.
	WANG J W, LIU Y. Hip and knee coordination patterns in relation to lower limb muscle activity during drop jumps at different heights[J]. Chin J Tissue Eng, 2023, 27(2): 276-281.
[7]	LOW B, COUTINHO D, GONÇALVES B, et al. A systematic review of collective tactical behaviours in football using positional data[J]. Sports Med, 2020, 50(2): 343-385. doi: 10.1007/s40279-019-01194-7 pmid: 31571155
[8]	TEPAVAC D, FIELD-FOTE E C. Vector coding: a technique for quantification of intersegmental coupling in multicyclic behaviors[J]. J Appl Biomech, 2001, 17(3): 259.
[9]	张阳, 王波, 朱佳华, 等. 功能性踝关节不稳康复治疗方法研究进展[J]. 中国运动医学杂志, 2023, 42(8): 651-657.
	ZHANG Y, WANG B, ZHU J H, et al. Progress in rehabilitation treatment of functional ankle instability[J]. Chin J Sports Med, 2023, 42(8): 651-657.
[10]	柯竟悦, 马圣楠, 董洪铭, 等. 不同足姿受试者运动贴扎后步行及慢跑时的足底压力变化[J]. 中国组织工程研究, 2024, 28(18): 2800-2807.
	KE J Y, MA S N, DONG H M, et al. Changes in plantar pressure of subjects with different foot positions during walking and jogging after kinesio taping[J]. Chin J Tissue Eng, 2024, 28(18): 2800-2807.
[11]	JOHNSON C D, OUTERLEYS J, DAVIS I S. Agreement between sagittal foot and tibia angles during running derived from an open-source markerless motion capture platform and manual digitization[J]. J Appl Biomech, 2022, 38(2): 111-116. doi: 10.1123/jab.2021-0323 pmid: 35272264
[12]	尹彦, 罗冬梅, 刘卉, 等. 功能性踝关节不稳的机制与自评量表的研究进展[J]. 中国康复理论与实践, 2018, 24(6): 671-677. doi: 10.3969/j.issn.1006-9771.2018.06.010
	YIN Y, LUO D M, LIU H, et al. Advance in mechanism and self-reported measures of functional ankle instability (review)[J]. Chin J Rehabil Theory Pract, 2018, 24(6): 671-677.
[13]	王佳伟, 刘晔. 运动协调理论模型与量化方法的演进[J]. 中国组织工程研究, 2022, 26(20): 3256-3264.
	WANG J W, LIU Y. Motor coordination: evolution of theoretical model and quantitative method[J]. Chin J Tissue Eng, 2022, 26(20): 3256-3264.
[14]	NEEDHAM R, NAEMI R, CHOCKALINGAM N. Quantifying lumbar-pelvis coordination during gait using a modified vector coding technique[J]. J Biomech, 2014, 47(5): 1020-1026. doi: 10.1016/j.jbiomech.2013.12.032 pmid: 24485511
[15]	YEN S, CHUI K K, CORKERY M B, et al. Hip-ankle coordination during gait in individuals with chronic ankle instability[J]. Gait Posture, 2017, 53: 193-200. doi: 10.1016/j.gaitpost.2017.02.001
[16]	CHIU S L, CHANG C C, CHOU L S. Inter-joint coordination of overground versus treadmill walking in young adults[J]. Gait Posture, 2015, 41(1): 316-318. doi: 10.1016/j.gaitpost.2014.09.015
[17]	COLE M H, SILBURN P A, WOOD J M, et al. Falls in Parkinson's disease: Evidence for altered stepping strategies on compliant surfaces[J]. Parkinsonism Relat Disord, 2011, 17(8): 610-616. doi: 10.1016/j.parkreldis.2011.05.019
[18]	NEEDHAM R A, NAEMI R, CHOCKALINGAM N. A new coordination pattern classification to assess gait kinematics when utilizing a modified vector coding technique[J]. J Biomech, 2015, 48(12): 3506-3511. doi: 10.1016/j.jbiomech.2015.07.023
[19]	MACLELLAN M J, PATLA A E. Adaptations of walking pattern on a compliant surface to regulate dynamic stability[J]. Exp Brain Res, 2006, 173(3): 521-530. doi: 10.1007/s00221-006-0399-5 pmid: 16491406
[20]	MOISAN G, MAINVILLE C, Descarreaux M, et al. Lower limb biomechanics during drop-jump landings on challenging surfaces in individuals with chronic ankle instability[J]. J Athl Train, 2022, 57(11/12): 1039-1047. doi: 10.4085/1062-6050-0399.21
[21]	王一吉, 周红俊, 刘根林, 等. 不完全性脊髓损伤患者与健康人步态变异性、对称性和协调性的对照研究[J]. 中国康复, 2023, 38(12): 724-728.
	WANG Y J, ZHOU H J, LIU G L, et al. A comparative study on gait variability, symmetry and coordination between patients within complete spinal cord injury and healthy individuals[J]. Chin J Rehabil, 2023, 38(12): 724-728.
[22]	马乾峰, 丁健, 李立, 等. 基于矢量编码技术研究功能性踝关节不稳者下肢协调性和变异性[J]. 医用生物力学, 2023, 38(6): 1086-1092.
	MA Q F, DING J, LI L, et al. Lower limb coordination and variability in patients with functional ankle instability based on vector coding analysis[J]. J Med Biomech, 2023, 38(6): 1086-1092.
[23]	周容, 黄灵燕, 毕嘉伟, 等. 基于脑网络的多焦点经颅直流电刺激降低健康成年人双任务步态变异性的研究[J]. 中国康复医学杂志, 2023, 38(11): 1514-1521.
	ZHOU R, HUANG L Y, BI J W, et al. Brain network-based multifocal transcranial direct current stimulation reduced dual task gait variability in healthy adults[J]. Chin J Rehabil Med, 2023, 38(11): 1514-1521.
[24]	GRIBBIN T C, SLATER L V, HERB C C, et al. Differences in hip-knee joint coupling during gait after anterior cruciate ligament reconstruction[J]. Clin Biomech, 2016, 32: 64-71. doi: 10.1016/j.clinbiomech.2016.01.006
[25]	DAVIDS K, GLAZIER P, ARAÚJO D, et al. Movement systems as dynamical systems: the functional role of variability and its implications for sports medicine[J]. Sports Med, 2003, 33(4): 245. doi: 10.2165/00007256-200333040-00001 pmid: 12688825
[26]	FEGER M A, DONOVAN L, HART J M, et al. Lower extremity muscle activation in patients with or without chronic ankle instability during walking[J]. J Athl Train, 2015, 50(4): 350. doi: 10.4085/1062-6050-50.2.06
[27]	HERB C C, HERTEL J. Shank-rearfoot joint coupling in young adults with chronic ankle instability: a cross-correlation analysis[J]. J Sports Med Phys Fitness, 2014, 55(6): 639-646.
[28]	LU J, WU Z, ADAMS R, et al. Sex differences in the relationship of hip strength and functional performance to chronic ankle instability scores[J]. J Orthop Res, 2022, 17(1): 173.

平面	关节	步态周期	硬地面	软地面	t值	P值
冠状面	髋-踝	支撑中期	255.9±31.3	198.6±55.7	3.122	0.017
		支撑后期	206.5±51.0	169.7±45.3	2.494	0.026
		摆动后期	144.6±59.4	216.6±56.2	3.735	0.020
	髋-膝	承重期	134.6±76.3	250.3±39.5	-5.500	< 0.001
		支撑中期	160.0±42.6	213.7±48.7	2.956	< 0.001
	膝-踝	摆动后期	161.0±43.7	212.0±50.3	3.695	0.003
矢状面	髋-踝	支撑中期	146.4±10.8	189.1±9.4	11.003	< 0.001
		支撑后期	147.3±15.2	205.8±17.0	9.478	< 0.001
		摆动后期	169.7±32.8	138.5±49.9	1.839	< 0.001
	髋-膝	承重期	247.8±23.0	156.2±22.4	11.186	< 0.001
	膝-踝	承重期	195.2±17.3	141.0±60.2	3.374	0.003
		支撑中期	70.4±23.7	270.9±77.0	8.506	< 0.001
		支撑后期	91.2±29.3	280.2±74.6	11.645	< 0.001
		摆动后期	211.0±26.2	152.0±68.0	2.746	0.020
水平面	髋-踝	承重期	241.3±43.6	201.7±32.2	2.558	0.018
	髋-膝	支撑后期	167.4±62.0	214.8±55.7	2.275	0.012
		摆动前期	207.2±45.3	138.3±58.8	4.256	< 0.001

平面	关节	步态周期	硬地面	软地面	t值	P值
冠状面	髋-踝	支撑中期	35.9±11.7	49.7±7.4	-3.301	0.006
	髋-膝	摆动前期	21.9±16.8	39.4±14.5	-5.016	< 0.001
		摆动期	30.6±7.9	41.4±11.3	-4.591	0.001
	膝-踝	支撑中期	39.3±10.2	52.8±6.7	-4.613	0.001
		摆动前期	21.8±15.9	41.4±16.4	-3.121	0.009
		摆动期	39.4±6.8	46.2±7.9	-5.259	< 0.001
矢状面	髋-膝	承重期	20.0±8.8	13.7±7.3	3.390	0.005
	膝-踝	摆动前期	18.0±17.7	29.3±14.8	-3.390	0.005
		摆动期	14.0±7.2	19.6±12.3	-2.259	0.043
水平面	髋-膝	支撑中期	49.2±8.6	56.9±4.0	-2.653	0.021
		支撑后期	48.9±5.6	57.3±6.2	-4.279	0.001
		摆动前期	41.5±12.2	54.5±8.6	-4.333	0.001
		摆动期	34.8±8.1	41.1±7.9	-2.577	0.024
	膝-踝	支撑中期	48.3±9.3	56.2±4.4	-2.990	0.011
		摆动前期	34.0±13.2	49.2±13.3	-3.256	0.007
		摆动期	33.1±10.1	43.5±8.9	-3.582	0.004
